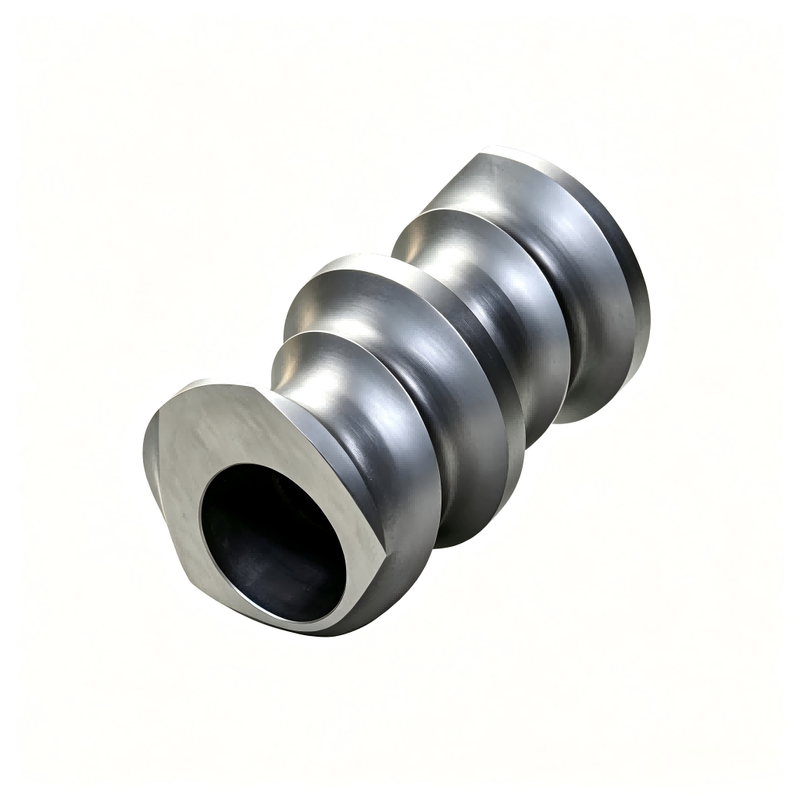

Twin Screw Extruder Screw Elements Eco Friendly Wear Resistant Co Rotating Segments
| Brand Name: | OEM |
| Model Number: | ESE001 |
| MOQ: | 10 |
| Supply Ability: | 5000pcs/month |
Twin Screw extruder screw elements
,Wear Resistant extruder screw elements
,WR5 screw element
Twin Screw Extruder Screw Elements | Eco-Friendly Wear-Resistant Co-Rotating Segments
Our co-rotating twin screw extruder screw elements are the core modular spare parts of parallel twin screw compounding equipment, widely recognized as the heart of plastic extrusion lines. Adopting self-wiping intermeshing geometry, these twin screw segments realize full-process material conveying, melting, dispersive mixing, distributive kneading, pressure building and devolatilization in the extruder barrel.
All screw elements adopt 5-axis full CNC precision machining, strictly follow standard involute spline parameters, and perfectly match mainstream co-rotating twin screw extruder models including JSW TEX, Leistritz ZSE, Berstorff, APV and lab small extruders. We supply complete series standard and custom screw segments, covering conveying elements, kneading blocks, slotted mixing elements, reverse anti-backflow L-type segments and special transition parts, fully meeting diverse compounding formulas for eco-friendly new materials, engineering plastics, masterbatch and food extrusion.
With multiple wear & corrosion resistant alloy material options and stable HRC58–62 hardness after vacuum heat treatment, our co-rotating twin screw extruder screw elements feature outstanding machinability, long service life and no material carbonization during continuous production.
Standard forward conveying blocks (single-flight D-type, two-flight SK series, multi-lead large throughput segments), deep-groove feeding elements, reverse L-type anti-backflow screw segments. Different lead & length ratios adjust material delivery speed and compression ratio, suitable for high-volume stable feeding, venting and pressure holding sections.
Full-angle standard kneading blocks for co-rotating TSE: KB30°, KB45°, KB60°, KB90°. Adjustable shear intensity from gentle low-shear mixing to intense high dispersion mixing, ideal for uniform blending of fillers, glass fiber, color masterbatch and biodegradable polymer raw materials.
SME slotted two-flight mixing elements, ZME reverse single-head mixing blocks, TME multi-distribution segments, NSF transition parts. Optimized flow channel design eliminates material dead zones, improves self-cleaning performance and reduces material degradation for low-carbon eco extrusion production.
| Model Series | Barrel ID (D) | Center Distance | Screw OD | Screw Root Diameter | Spline Teeth | Typical L/D Ratio |
|---|---|---|---|---|---|---|
| TEX22 / 22mm | φ22 mm | 18 mm | φ21.7 mm | φ14 mm | 20T | 4:1 |
| TEX35 / 35mm | φ36 mm | 30 mm | φ35.6 mm | φ23.6 mm | 18T | 4:1 |
| TEX42 / 42mm | φ41.6 mm | 34.5 mm | φ41.2 mm | φ27 mm | 20T | 4:1 |
| TEX50 / 50mm | φ51 mm | 42 mm | φ50.5 mm | φ32.5 mm | 27T | 4:1 |
| TEX65 / 65mm | φ63 mm | 52 mm | φ62.4 mm | φ40.4 mm | 22T | 4:1 |
| TEX75 / 75mm | φ71.8 mm | 60 mm | φ71 mm | φ47 mm | 26T | 4:1 |
| TEX85 / 85mm | φ81.9 mm | 67.8 mm | φ81 mm | φ52.6 mm | 44T | 4:1 |
| TEX95 / 95mm | φ92–94 mm | 78 mm | φ91–93 mm | φ61–63 mm | 26T | 4:1 |
| TEX110 / 110mm | φ112 mm | 92 mm | φ111 mm | φ71 mm | 30T | 4:1 |
| TEX135 / 135mm | φ133 mm | 110 mm | φ132 mm | φ85 mm | 22T | 4:1 |
| Element Category | Standard Model Code | Lead / Length Specs | Function | Typical Application Section |
|---|---|---|---|---|
| Conveying Elements | Standard Forward Type (A/SK Series) | 24/48, 32/32, 56/56, 72/72, 96/96, 144/144 | High-efficiency forward material conveying | Feeding zone, venting zone, discharge zone |
| Deep Groove SK Series | 48/48SK, 72/72SK, 96/96SK | Increased throughput, low shear conveying | High-fill feeding section | |
| Reverse L-Type | 56/28L, 72/36L, 96/48L | Build back pressure, prevent material backflow | Pressure building, mixing section front | |
| Single-Flight D-Type | D22/22, D28/28, D32/32 | Large lead gentle conveying, transition use | Transition between different element types | |
| Kneading Blocks (KB) | KB30° Series | KB30°/7/28, KB30°/7/56, KB30°/7/72 | Low shear, distributive mixing | Gentle blending, heat-sensitive materials |
| KB45° Series | KB45°/5/24, KB45°/5/36, KB45°/5/56 | Medium shear, balanced dispersion & mixing | Universal compounding, masterbatch | |
| KB60° Series | KB60°/4/22, KB60°/4/44, KB60°/4/56 | High shear, strong dispersive mixing | Filler dispersion, glass fiber | |
| KB90° Series | KB90°/5/24, KB90°/5/36, KB90°/5/56 | Maximum shear, neutral conveying | Intense dispersion, pressure generation | |
| Special Mixing Elements | SME Slotted Type | SME22/22, SME32/32, SME44/44 | Two-flight slotted, enhanced distributive mixing | Color masterbatch, alloy blending |
| ZME Reverse Slotted | ZME8/16, ZME12/24, ZME16/32 | Single-head reverse slot, high turbulence mixing | Reactive extrusion, devolatilization | |
| TME Multi-Tooth | TME12, TME18 | Multi-stage distribution mixing | Uniform additive dispersion | |
| NSF Transition | NSF7, NSF8, NSF9 | Smooth transition between D-type & standard elements | Screw profile transition zone |
Naming Rule: Number before "/" = Lead (mm); Number after "/" = Element length (mm); Suffix "L" = Left-hand / reverse rotation.
| Material Grade | Hardness (HRC) | Wear Resistance | Corrosion Resistance | Recommended Application |
|---|---|---|---|---|
| 38CrMoAl Nitrided Steel | HRC 60–62 | ★★★☆☆ | ★★☆☆☆ | General-purpose PP/PE compounding, cost-effective |
| W6Mo5Cr4V2 (6542 HSS) | HRC 62–64 | ★★★★☆ | ★★★☆☆ | High-fill glass fiber, calcium carbonate filling |
| WR5 Powder Metallurgy Alloy | HRC 62–65 | ★★★★★ | ★★★★☆ | High wear working conditions, long continuous production |
| 45# Nickel-Based Alloy | HRC 58–60 | ★★★☆☆ | ★★★★★ | Corrosive PVC, flame retardant, acid formula |
| 92# Nickel-Based Alloy | HRC 55–58 | ★★☆☆☆ | ★★★★★ | Strong corrosion, food & medical grade extrusion |
| 316L Stainless Steel | HRC 45–50 | ★★☆☆☆ | ★★★★★ | Food extrusion, pharmaceutical, clean production |
| Inspection Item | Standard Tolerance | Inspection Method |
|---|---|---|
| Outer Diameter (OD) | ±0.01 mm | Micrometer |
| Root Diameter | ±0.015 mm | Profile projector |
| Spline Inner Hole | H7 / Class 6 | Spline gauge |
| Axial Length | ±0.02 mm | Vernier caliper |
| Center Distance Deviation | ±0.01 mm | Coordinate measuring machine |
| Surface Roughness | Ra 0.8–1.6 μm | Roughness tester |
| Intermeshing Clearance | 0.15–0.35 mm (adjustable by model) | Assembly trial fit |
| Heat Treatment Hardness Uniformity | ±1 HRC | Rockwell hardness tester |
We provide tiered alloy material solutions for different working conditions:
All materials undergo vacuum quenching & tempering heat treatment, surface sandblasting or nickel alloy coating optional, reaching hardness HRC58–62 for long-term continuous operation.
- Precise Self-Wiping Geometry
Standard intermeshing clearance, full self-wiping effect to prevent material residue and carbon buildup, ensure consistent product quality for long-term production. - Universal Spline Matching
Customizable spline tooth number, modulus and pressure angle (30°/45°), fully interchangeable with original extruder core shafts, direct replacement without modification. - High Precision Machining
Tolerance controlled within ±0.01mm, smooth tooth surface without burrs, stable outer diameter, bottom diameter and center distance consistent with extruder model standards. - Flexible Customization Support
Accept drawing customization, reverse engineering mapping, special lead, reverse rotation, low/high shear non-standard screw element development, small trial orders and mass production available. - Eco-Friendly Production Process
Low-pollution alloy processing technology, energy-saving heat treatment, no heavy metal pollution, matching global eco-friendly material compounding production demands.
- Biodegradable plastic compounding (PLA, PBAT, starch-based pellets)
- Wood plastic composite (WPC) profile & granulation
- PP/PVC environmental protection color masterbatch production
- Engineering plastic glass fiber reinforced modification
- Food & feed twin screw extrusion
- Reactive extrusion, filler filling, devolatilization modification
- Lab small twin screw extruder material research
Full range model matching screw segments for co-rotating twin screw extruders:
- ISO9001 certified production workshop, independent heat treatment and precision testing laboratory
- Full-process inspection: Raw material test → CNC machining → hardness detection → spline tolerance inspection → finished surface QC
- Export standard wooden case packaging, rust-proof oil treatment for long sea transportation
- 6-12-month quality warranty, 24-hour online technical support for screw configuration scheme design
- Free sample testing support for new material formula development
