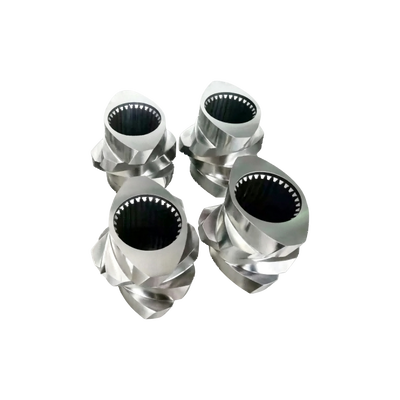

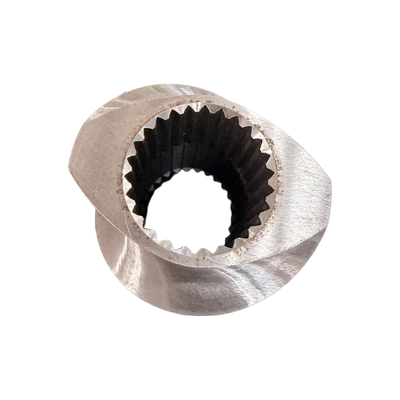

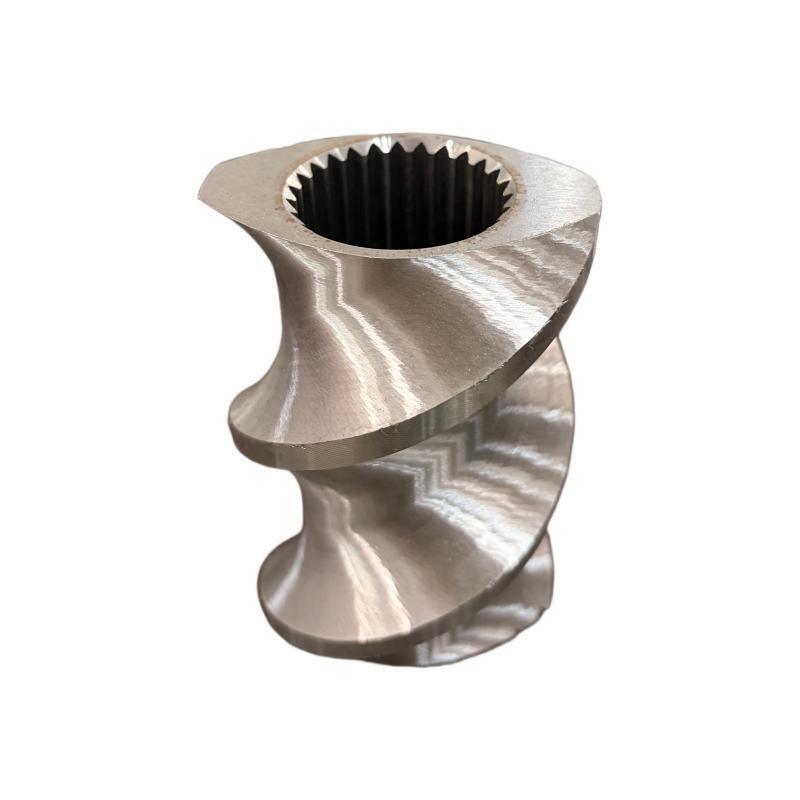

TEX90 Conveying Screw Element For Puffed Food Co-Rotating Twin Screw Extruder
| Brand Name: | OEM |
| Model Number: | CSE008 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Negotiable |
| Supply Ability: | 8000pcs/month |
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, ISO45001
Product Name:
TEX90 Convey Screw Element
Model:
TEX90
Product Type:
Conveying Screw Segment / Feed Screw Block
OD:
90mm
OD/ID Ratio:
1.75
Hardness:
56–59 HRC
Materail:
38CrMoAlA, WR45 Alloy, 316L Stainless Steel, Anti-stick Alloy
Inner Spline Precision:
Grade 6 Involute Spline
Core Function:
Raw Material Conveying, Pre-compression, Anti-backflow, Anti-stick
Industry:
Puffed Snack, Pet Food, Nutritional Cereal, Modified Starch Processing
Customizable Items:
Helix Pitch, Segment Length, Groove Depth, Material
MOQ:
1pc Sample, Bulk Discount ≥20pcs Or Negotiable
Leadtime:
15–30 Working Days (Standard)
Keywords:
TEX90 Convey Screw Element,TEX90 Twin Screw Segment,food Grade Feed Screw Block
Packaging Details:
Export Standard Carton, Wooden Case Sea-worthy
Highlight:
TEX90 Conveying Screw Element
,90mm Conveying Screw Element
,59 HRC screw elements
Product Description
TEX90 Convey Screw Elements for Puffed Food Co-Rotating Twin Screw Extruder
Factory Supply TEX90 Convey Screw Elements, 90mm OD Food Grade Twin Screw Conveying Segments, Anti-Stick for Puffed Snack Extrusion Line
Product Introduction
TEX90 Convey Screw Elements are modular feeding segments matched with 90mm outer diameter co-rotating twin screw extruders, specially optimized for puffed food production lines. This conveying screw block handles continuous starch raw material transport, pre-compression and uniform feeding during snack puffing, cereal extrusion and pet food pelletizing. Smooth polished surface prevents starch adhesion and residue buildup, and the optimized helix avoids material backflow under low-to-medium pressure food extrusion conditions. We provide fully customizable TEX90 conveying elements with adjustable pitch, length and food-safe alloy materials to solve sticky material blockage, hard-to-clean and uneven feeding problems for food processing factories.
Core Technical Parameters Table
| Item | Standard Specification | Customized Options |
|---|---|---|
| Model | TEX90 Convey Screw Element | Custom pitch, length, flight width |
| Screw Outer Diameter | 90 mm | Fixed standard OD |
| OD/ID Ratio | 1.75 | Non-adjustable standard size |
| Standard Hardness | 56–59 HRC | Fine-tune by heat treatment |
| Standard Material | 38CrMoAlA, WR45 | 316L food-grade stainless steel, anti-stick alloy |
| Surface Finish | Fine polishing Ra≤0.2 | Mirror polishing for high hygiene food workshop |
| Inner Spline | Grade 6 precision involute spline | Fully interchangeable modular spline |
| Heat Treatment | Vacuum nitriding, non-toxic surface treatment | Food-safe anti-corrosion tempering |
| Working Temperature Range | ≤220℃ | Low-temperature modification for cold extrusion snacks |
| Core Hygiene Standard | Meet food contact safety requirements | Full stainless steel for baby food & organic snacks |
| Warranty | 12 months | Extra 6-month warranty for bulk orders |
Core Product Advantages
- Anti-Stick & Stable Feeding for Starch Raw Materials Smooth polished surface reduces starch adhesion. Optimized helix pushes raw materials evenly without backflow, keeps consistent puffing quality.
- Food-Grade Safe & Easy to Clean 316 stainless steel option meets food contact standards. Flat seamless structure leaves no food residue, quick disassembly for daily washing.
- High Precision Interchangeable Modular Design 5-axis CNC machining controls tolerance within ±0.01mm. Grade 6 spline fits standard screw shafts tightly, no torque loss during long-time snack production.
- Flexible Customization for Diverse Food Recipes Wide-pitch segments for large-volume powder feeding, narrow-pitch blocks for dense cereal pre-compression. Custom drawing service based on your snack formula and output.
- Strict Hygiene & Dimension Inspection Each screw segment passes roughness, hardness and spline tests before delivery. Provide food contact material certificates for factory audit.
Puffed Food Industry Application Scenarios
This TEX90 conveying screw element is widely installed on 90mm twin screw extruders for all kinds of food processing:
- Leisure puffed snacks: Corn puffs, rice crisps, expanded cereal strips
- Pet food: Extruded dog/cat food, aquatic feed pellets
- Nutritional food: Baby cereal, modified starch, instant porridge raw material
- Functional snacks: High-protein extruded bars, low-fat puffing food
- Food raw material processing: Modified starch, pre-gelatinized starch extrusion
Production & Packing Info
- MOQ: 1 piece for sample test, bulk discount over 20 pieces
- Production Lead Time: 12–22 working days for standard TEX90 elements; 28–35 days for full stainless steel customized parts
- Export Packing: Anti-rust edible protective oil + plastic film + solid plywood case, clean and dust-free for food machinery parts
- After-sales Service: 12-month warranty, free technical support for TEX90 screw layout matching
CTA Inquiry Section
Send your snack production formula, target hourly output and extruder layout drawing to our technical team. We will recommend the most suitable TEX90 convey screw element pitch and food-grade material for your puffed food line. Get factory direct quotation and free technical solution now!
FAQ
- Q: Which extruder matches TEX90 convey screw element? A: It fits all 90mm outer diameter co-rotating twin screw extruders with OD/ID ratio 1.75, designed specially for puffed food extrusion.
- Q: Which material is best for baby food and high-hygiene snack production? A: 316L food-grade stainless steel is the top choice, it resists organic acid corrosion and fully meets food contact safety standards.
- Q: Can I customize the helix pitch of TEX90 feed screw for light powder raw materials? A: Yes, deep-groove wide-pitch conveying blocks are customized for fluffy starch powder to avoid feeding blockage.
- Q: How long is the service life of TEX90 screw element in continuous food production? A: Standard nitrided steel version runs 7000–10000 working hours; 316 stainless steel version lasts 6000–9000 hours under daily cleaning cycles.
- Q: Is the inner spline compatible with standard TEX90 series screw shafts? A: 100% interchangeable, Grade 6 involute spline, no modification needed during assembly.

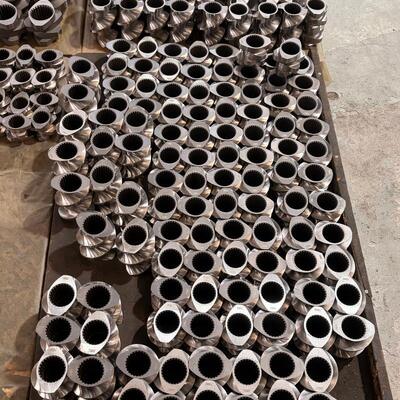

Factory Photos
