JSW TEX65 Long Service Life Conveying Screw Element For Twin Screw Extruder
| Brand Name: | OEM |
| Model Number: | CSE019 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C,Negotiable |
| Supply Ability: | 8000pcs/month |
TEX65 Conveying Screw Element
,JSW Conveying Screw Element
,Twin Screw Extruder screw element

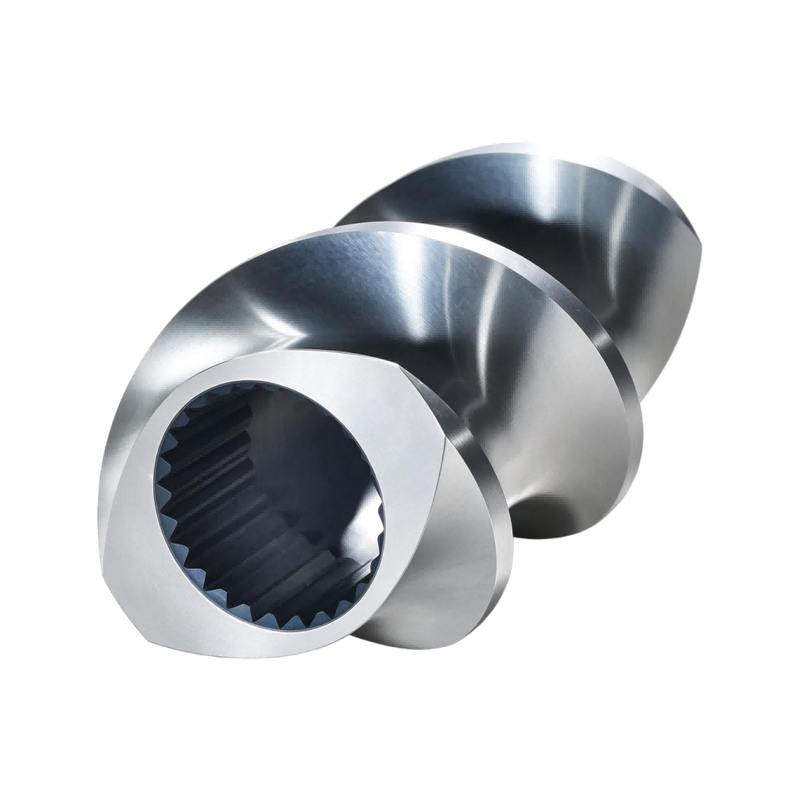

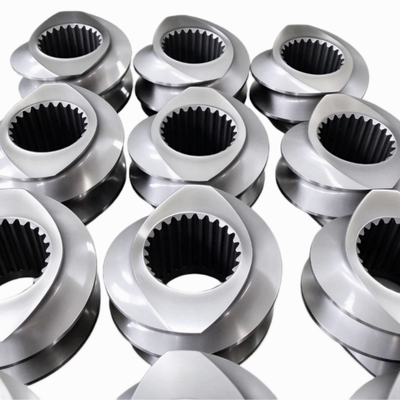

JSW TEX65 Long Service Life Conveying Screw Element for Twin Screw Extruder
Product Description
The JSW TEX65 Conveying Screw Element is designed for twin screw extrusion and compounding applications. It helps transport materials through the extrusion barrel and maintain a stable material flow during continuous production.
The element focuses on reliable conveying performance and long service life. Its material and heat treatment can be selected according to the processing material and working conditions. This makes it suitable for demanding applications involving PVC, glass fiber reinforced materials, nylon, and other engineering plastics.
The precision-machined screw element features a matching spline connection for installation on the corresponding twin screw shaft. Accurate machining helps maintain proper alignment between individual elements and supports smooth screw rotation.
CONLIN can manufacture TEX65 conveying screw elements in different geometries and material grades. We can also customize the element according to the customer's extruder model, shaft specification, original part number, drawing, or sample.
Key Features
-
Designed for JSW TEX65 extruder systems
-
Conveying screw element configuration
-
Long service life
-
Suitable for continuous extrusion
-
Good wear resistance
-
Precision CNC machining
-
Accurate spline connection
-
Suitable for PVC and engineering plastics
-
Compatible with glass fiber reinforced materials
-
Custom material and geometry options
Product Specifications
| Item | Specification |
|---|---|
| Product Name | JSW TEX65 Conveying Screw Element |
| Product Type | Twin Screw Extruder Screw Element |
| Extruder Brand | JSW |
| Extruder Model | TEX65 |
| Element Function | Material Conveying |
| Application | Plastic Extrusion & Compounding |
| Processing Materials | PVC, Glass Fiber Reinforced Materials, Nylon |
| Material | According to Application |
| Material Grade | Customizable |
| Element Diameter | According to TEX65 Specification |
| Element Length | According to Customer Drawing |
| Connection Type | Internal Spline |
| Spline Profile | According to Shaft Specification |
| Flight Configuration | According to Screw Design |
| Flight Direction | Right-Hand / Left-Hand |
| Element Geometry | Conveying Type |
| Manufacturing Process | CNC Precision Machining |
| Dimensional Tolerance | According to Technical Drawing |
| Surface Finish | Precision Machined |
| Heat Treatment | According to Material Selection |
| Hardness | According to Material & Heat Treatment |
| Wear Resistance | Application Dependent |
| Service Life | Application Dependent |
| OEM Replacement | Available |
| Custom Manufacturing | Available |
| Quality Inspection | Material, Dimension, Spline, Hardness & Surface Inspection |
Applications
The JSW TEX65 conveying screw element can support a wide range of extrusion and compounding processes, including:
-
PVC extrusion
-
Glass fiber reinforced plastics
-
Nylon compounding
-
Engineering plastic compounding
-
Filled plastic processing
-
Polymer processing
-
Thermoplastic extrusion
For materials with high filler content or abrasive additives, CONLIN can recommend suitable material grades and surface treatments based on the customer's operating conditions.
Custom Manufacturing
CONLIN provides customized conveying screw elements for JSW TEX65 and other twin screw extrusion systems.
Please provide the extruder model, shaft diameter, original part number, technical drawing, or sample when requesting a quotation. We can check the required dimensions, spline profile, material, heat treatment, and screw configuration before production.
