High Strength Premium Twin Conveying Screw Element WR5 W6Mo5Cr4V2
| Brand Name: | OEM |
| Model Number: | CSE020 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Negotiable |
| Supply Ability: | 8000pcs/month |
W6Mo5Cr4V2 extruder screw elements
,WR5 extruder screw elements
,High Strength extruder components

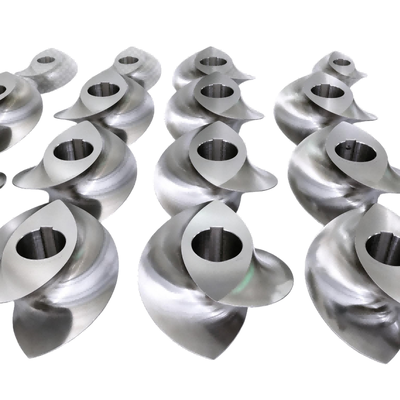

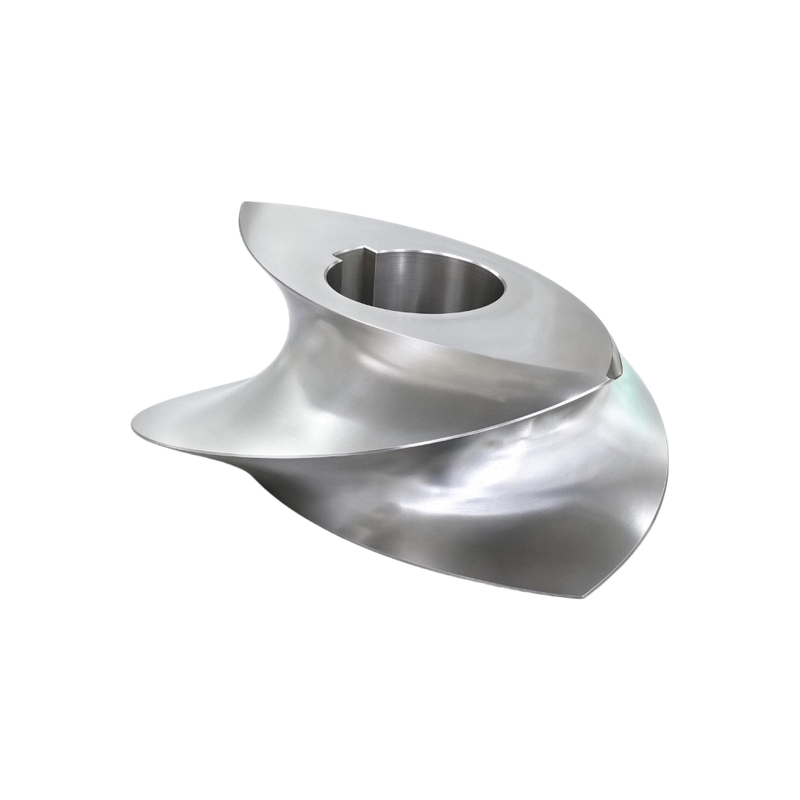

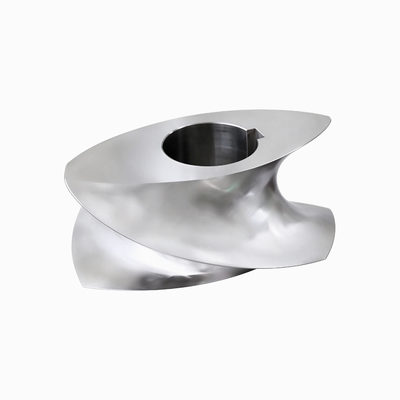

Premium Twin Conveying Screw Element WR5 / W6Mo5Cr4V2
Product Description
The Premium Twin Conveying Screw Element is developed for twin screw extrusion systems that require strong mechanical performance and reliable material conveying. It is available in WR5 and W6Mo5Cr4V2 material options to meet different processing requirements.
The conveying element moves material through the screw channel while maintaining a consistent feed between different sections of the extrusion system. Its high-strength construction helps the component withstand mechanical loads generated during continuous operation.
WR5 and W6Mo5Cr4V2 offer different performance characteristics. The appropriate grade can be selected according to the processed material, filler content, operating conditions, and expected service requirements.
CONLIN can manufacture the conveying element according to the customer's screw drawing, shaft specification, sample, extruder model, or OEM part number.
Key Features
- Premium twin conveying screw element
- WR5 and W6Mo5Cr4V2 material options
- High mechanical strength
- Stable material conveying
- Suitable for continuous twin screw extrusion
- Material selection based on processing conditions
- Compatible with modular screw configurations
- Custom dimensions and conveying geometry available
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Premium Twin Conveying Screw Element |
| Product Type | Twin Screw Extruder Conveying Element |
| Main Function | Material Conveying |
| Extruder Type | Twin Screw Extruder |
| Material Options | WR5 / W6Mo5Cr4V2 |
| Material Category | Tool Steel / High-Performance Alloy Steel |
| Mechanical Performance | High Strength |
| Wear Performance | Application Dependent |
| Element Configuration | Conveying Element |
| Flight Design | According to Screw Configuration |
| Flight Direction | Right-Hand / Left-Hand |
| Element Diameter | According to Extruder Specification |
| Element Length | According to Drawing |
| Conveying Geometry | According to Process Requirements |
| Shaft Connection | According to Existing Shaft |
| Spline Profile | According to Shaft Specification |
| Heat Treatment | According to Material Grade |
| Hardness | According to Material and Heat Treatment |
| Surface Finish | According to Technical Requirement |
| Dimensional Tolerance | According to Technical Drawing |
| Screw Arrangement | Modular / Customized |
| Processing Materials | Thermoplastics / Compounds / Filled Materials |
| Custom Manufacturing | Available |
| OEM Replacement | Available |
| Production Reference | Drawing / Sample / Part Number |
| Quality Inspection | Material, Dimensions, Hardness and Spline Inspection |
Material Options
WR5
WR5 provides a high-performance material option for extrusion components that require strong wear performance. It can suit demanding conveying sections and applications where the screw element faces continuous material contact.
W6Mo5Cr4V2
W6Mo5Cr4V2 is a high-speed tool steel commonly selected for extrusion components that require a combination of hardness, strength, and wear resistance. It provides another material option for different plastic processing conditions.
The final material selection should consider the polymer type, filler content, processing temperature, screw speed, and operating conditions.
Applications
The conveying screw element can be used in:
- Plastic extrusion
- Polymer compounding
- Engineering plastic processing
- Filled plastic processing
- Masterbatch production
- Thermoplastic blending
- Continuous material conveying
- General twin screw extrusion
The conveying section can form part of a larger screw configuration together with mixing, kneading, reverse, and other functional elements.
Custom Manufacturing
CONLIN manufactures conveying screw elements based on the customer's actual screw configuration.
Provide the extruder model, screw drawing, shaft dimensions, sample, or OEM part number. We can match the required conveying geometry and connection dimensions and select WR5 or W6Mo5Cr4V2 according to the processing conditions.
