ZSE135 Conveying Twin Screw Elements For Twin Screw Extruder
| Brand Name: | OEM |
| Model Number: | CSE018 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,WesternUnion,Negotiable |
| Supply Ability: | 8000pcs/month |
ZSE135 twin screw elements
,Conveying twin screw elements
,Conveying twin screw extruder elements

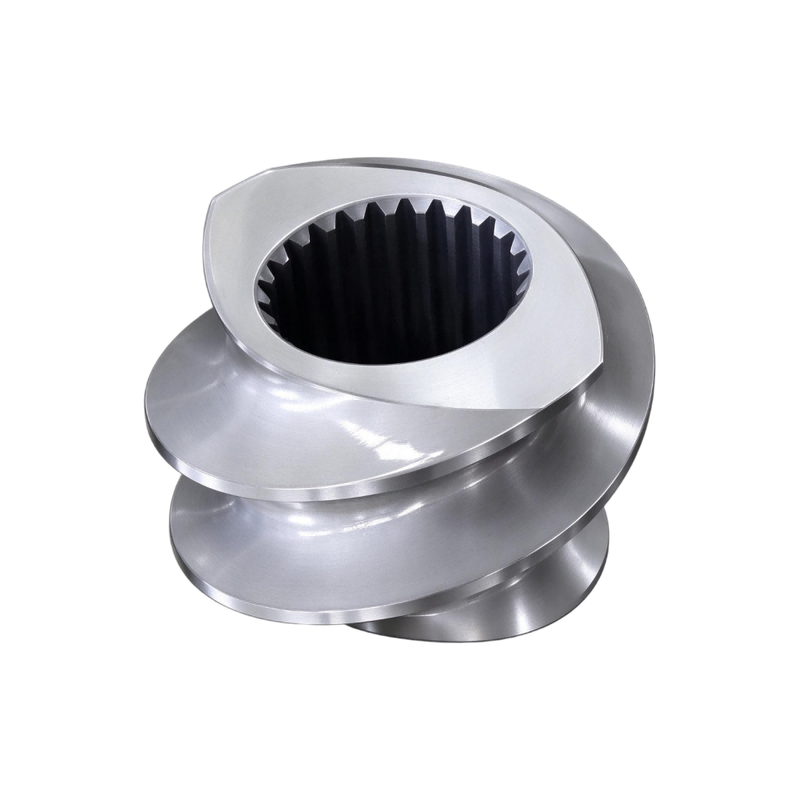

ZSE135 Conveying Screw Element for Twin Screw Extruder
Product Description
The ZSE135 Conveying Screw Element is designed for twin screw extruder systems and continuous extrusion applications. It helps transport plastic materials through the barrel and supports stable material flow during compounding and extrusion.
The screw element features a precision-machined conveying profile and an internal spline connection. Accurate machining helps maintain proper alignment between the screw element and the corresponding twin screw shaft.
The ZSE135 conveying screw element can suit different plastic processing applications. The final material grade, screw geometry, flight configuration, and surface treatment can be selected according to the processing material and operating conditions.
CONLIN manufactures screw elements for different twin screw extruder systems. We can produce standard replacement parts as well as customized elements based on technical drawings, original samples, or part specifications.
Key Features
-
Designed for ZSE135 extrusion systems
-
Conveying screw element configuration
-
Suitable for twin screw extruders
-
Precision CNC machining
-
Accurate internal spline connection
-
Consistent screw element geometry
-
Custom material options
-
Custom flight configurations
-
Suitable for OEM replacement applications
Product Specifications
| Item | Specification |
|---|---|
| Product Name | ZSE135 Conveying Screw Element |
| Product Type | Twin Screw Extruder Screw Element |
| Extruder Model | ZSE135 |
| Element Function | Material Conveying |
| Extruder Configuration | Twin Screw Extruder |
| Element Diameter | According to ZSE135 Specification |
| Element Length | According to Customer Drawing |
| Material | According to Application |
| Material Grade | Customizable |
| Connection Type | Internal Spline |
| Spline Profile | According to Shaft Specification |
| Flight Configuration | According to Screw Design |
| Flight Direction | Right-Hand / Left-Hand |
| Element Geometry | Conveying Type |
| Manufacturing Process | CNC Precision Machining |
| Dimensional Tolerance | According to Technical Drawing |
| Spline Tolerance | According to Shaft Requirement |
| Surface Finish | Precision Machined |
| Heat Treatment | According to Material and Application |
| Hardness | According to Material & Heat Treatment |
| Wear Resistance | According to Material Selection |
| Application | Plastic Extrusion & Compounding |
| OEM Replacement | Available |
| Custom Manufacturing | Available |
| Quality Inspection | Material, Dimension, Spline, Hardness & Surface Inspection |
Applications
The ZSE135 conveying screw element can support various twin screw extrusion processes, including:
-
Plastic compounding
-
Engineering plastic processing
-
Filled plastic processing
-
Polymer compounding
-
Masterbatch production
-
Thermoplastic extrusion
The suitable screw element material and geometry depend on the processing material, temperature, filler content, production capacity, and operating conditions.
Custom Manufacturing
CONLIN can manufacture ZSE135 conveying screw elements with different materials, geometries, spline profiles, and flight configurations.
Please provide the extruder model, shaft diameter, original part number, technical drawing, or sample when requesting a quotation. We can verify the required dimensions and configuration before production.
