ZSE135 Conveying Screw Element ZSE135 MAXX Twin Screw Spare Parts
| Brand Name: | OEM |
| Model Number: | CSE006 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 8000pcs/month |
ZSE135 Conveying Screw Element
,138.7mm Conveying Screw Element
,ZSE135 twin screw extruder screw elements

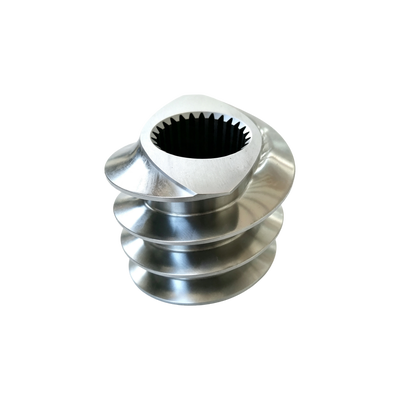

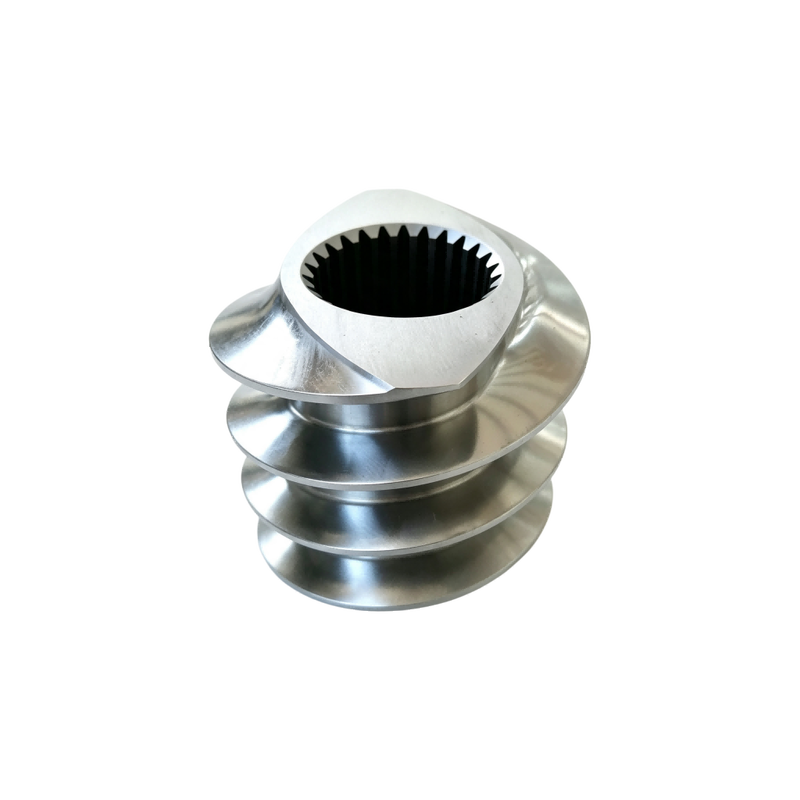

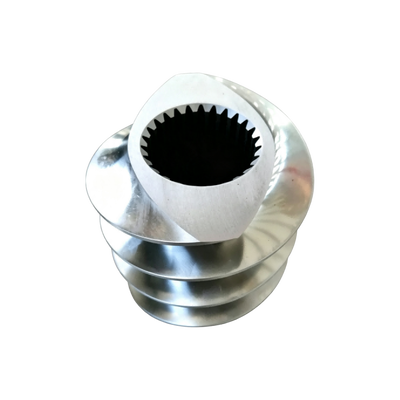

ZSE135 Convey Screw Element | ZSE135 MAXX Twin Screw Spare Parts
Our ZSE135 Convey Screw Element is dedicated spare segment for ZSE135 MAXX co-rotating twin screw extruder, the core feeding component for large-output plastic compounding production line. This conveying screw element undertakes stable material delivery, pre-compression and uniform feeding tasks, perfectly matched with ZSE135 MAXX extruder’s 138.7mm screw diameter, 1.66 OD/ID ratio and 15.0 Nm/cm³ high torque system. We produce full-spec ZSE135 convey screw segments with customizable helix pitch, length and alloy materials, solving unstable feeding, material backflow and fast wear points for compounding manufacturers.
| Item | Standard Parameter | Custom Option |
|---|---|---|
| Model | ZSE135 Convey Screw Element | Custom pitch/length |
| Matched Extruder | ZSE135 MAXX Twin Screw Extruder | ZSE135 series all models |
| Outer Diameter | 138.7 mm | No change, standard size |
| Hardness | 58-62 HRC | Adjust by heat treatment |
| Standard Material | WR5, WR45, SKD11, 38CrMoAlA | SAM26, CPM10V, 316L stainless steel |
| Surface Finish | Sand blasting + fine polishing Ra≤0.4 | Mirror polishing for food/pharma |
| Inner Spline | Standard ZSE135 involute spline | Gear grade 6 precision |
| Heat Treatment | Independent vacuum quenching | Double tempering for anti-fatigue |
| Working Output Match | Up to 10,000 kg/h extrusion line | Large-volume compounding |
| Warranty | 12 months | Extended 6 months upon request |
- High Precision Interchangeable Structure
Our ZSE135 convey screw element adopts 1:1 standard drawing design, CNC 5-axis machining controls tolerance within ±0.01mm. Standard inner spline realizes quick assembly with ZSE135 screw shaft, no gap, avoids torque loss during high-speed operation.
- Excellent Wear & Corrosion Resistance
We equip ZSE135 conveying segments with PM-HIP powder alloy WR5 as standard material, self-owned vacuum quenching workshop stabilizes hardness at 58-62HRC. For corrosive materials (PVC, pharmaceutical raw materials), we supply stainless steel 316L or nickel alloy convey screw elements to extend service life 2-3 times than ordinary nitrided steel parts.
- Stable Feeding, No Material Backflow
Optimized single/two-flighted conveying helix design increases material forward pushing force, effectively prevents melt backflow under high torque ZSE135 MAXX working condition. Uniform material transportation reduces local overheating, improves finished plastic particle consistency.
- Full Customization Support
Adjust screw pitch, segment length, flight width according to your production formula. We design special deep-groove ZSE135 convey screw elements for powder feeding, narrow-pitch segments for high-viscosity rubber compounding. Provide drawing design service based on your extrusion process requirements.
- Strict Quality Inspection
Every ZSE135 convey screw element undergoes spline gauge test, hardness detection, surface roughness inspection before delivery. We provide material test report (MTR) and heat treatment certificate for industrial customers.
- Plastic modification: PP/PA/PC glass fiber filling, flame retardant compounding
- Masterbatch production: Color masterbatch, functional additive masterbatch
- Rubber & elastomer: TPE, EVA foam material extrusion
- Chemical industry: Powder coating, plastic recycling pelletizing
- Food & pharmaceutical: Hot melt extrusion, food additive granulation
- MOQ: 1 piece for sample order, bulk discount over 20 pcs
- Production Lead Time: 15-25 working days for standard ZSE135 convey screw element; 30-40 days for customized alloy segments
- Packing: Anti-rust oil + plastic film + solid plywood case, suitable sea/air transportation
- After-sales: 12-month warranty, free technical matching guidance for ZSE135 extruder screw layout
Send us your ZSE135 extruder screw layout drawing or material formula, our engineer will recommend the most suitable convey screw element pitch and alloy material for you. Get factory direct price list and free sample quotation now!
- Q: What extruder does ZSE135 convey screw element fit?
A: It specially matches ZSE135 MAXX co-rotating twin screw extruder, outer diameter 138.7mm, OD/ID ratio 1.66, supports maximum production capacity 10000kg/h.
- Q: Which material is best for abrasive glass fiber compounding ZSE135 conveying segment?
A: WR5 PM-HIP powder alloy is the top choice, hardness 58-62HRC, strong wear resistance for high-filler plastic processing.
- Q: Can you customize the helix pitch of ZSE135 convey screw element?
A: Yes, we provide wide-pitch for fast feeding, narrow-pitch for pre-compression, deep-groove design for light powder raw materials.
- Q: How long is the service life of ZSE135 feed screw segment?
A: Standard WR5 material reaches 8000-12000 working hours; stainless steel type for corrosive materials lasts 6000-9000 hours under normal operation.
- Q: Is the inner spline of your ZSE135 convey element interchangeable with standard matching parts?
A: 100% interchangeable, gear grade 6 precision spline, completely compatible with standard ZSE135 screw shaft without modification.
