Threaded Element Threaded Block Kneading Block Twin Screw Plastic Granulator Meshing Accessories
|
Threaded Element Threaded Block Kneading Block Twin Screw Plastic Granulator Meshing Accessories
| Brand Name: | OEM |
| Model Number: | ERP001 |
| MOQ: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, ISO45001
Product Name:
Plastic Twin Screw Extruder Other Screw Element WR5 Material Extrusion
Installation Difficulty:
Easy To Install
Nozzle Size Compatibility:
0.4 Mm To 0.8 Mm
Weight:
150 Grams
Material:
Aluminum Alloy
Compatibility:
Compatible With Most 3D Printer Extruders
Operating Temperature Range:
-20°C To 250°C
Dimensions:
100 X 50 X 30 Mm
Filament Diameter Support:
1.75 Mm And 3 Mm
Durability:
High Wear Resistance
Mounting Type:
Bolt-on
Color:
Silver
Warranty:
6 -12months Warranty
Packaging Details:
Industrial Carton
Highlight:
High wear resistance Extruder Replacement Parts
,Extruder Replacement Parts
,High wear resistance Kneading Block
Product Description

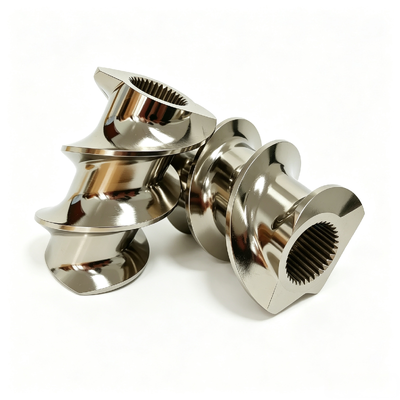

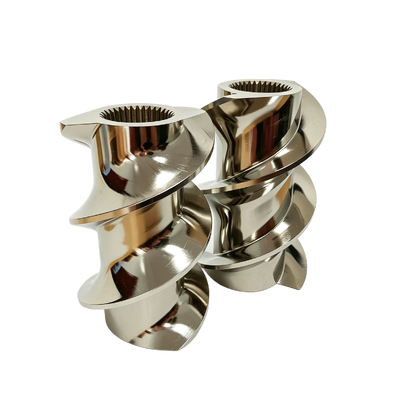

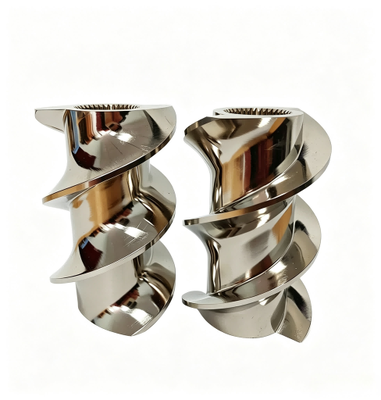

Threaded Element Threaded Block Kneading Block | Twin Screw Plastic Granulator Meshing Accessories
Threaded Element Threaded Block Kneading Block – Full Series Meshing Accessories For Twin Screw Plastic Granulator
Product Overview
Threaded element, threaded conveying block and meshing kneading block are the core modular spare parts for co-rotating twin screw plastic granulators, covering the full extrusion process of feeding, conveying, melting, homogenization mixing and pressure building.
Threaded Element / Threaded Block: Mainly responsible for material conveying, forward pushing and pressure adjustment; available in wide pitch, medium pitch and narrow pitch to control throughput, residence time and melt pressure.
Meshing Kneading Block: Multi-lobe staggered meshing structure, provide dispersive and distributive mixing, break up fillers, evenly blend plastic matrix, fiber, powder and additives.
All twin screw plastic granulator meshing accessories adopt WR5 powder metallurgy alloy, 6542 high-speed steel or nickel alloy blank, processed by 5-axis full CNC precision grinding, integral vacuum quenching to stable HRC58–62 hardness. Standard involute spline inner hole ensures zero-clearance assembly with extruder spline shaft, precise self-wiping profile eliminates material dead zone and carbonization. Widely matched with TEX, STS, ZSE series twin screw granulators for color masterbatch, WPC composite, glass fiber reinforced engineering plastic, biodegradable plastic and waste plastic recycling pelletizing production lines.
Detailed Technical Parameter Table
| Parameter Item | Standard Specification | Tolerance Standard |
|---|---|---|
| Product Range | Threaded Element, Threaded Conveying Block, Meshing Kneading Block | Twin screw plastic granulator full series accessories |
| Applicable Equipment | All co-rotating parallel twin screw extruder / plastic pelletizing granulator (TEX/STS/ZSE series) | 100% OEM interchangeable |
| Outer Diameter Range | 12mm, 30mm, 54mm, 65mm, 75mm, 95mm, 110mm, 135mm, 200mm, 300mm | ±0.01mm |
| Threaded Block Pitch Types | Wide pitch (high throughput), medium pitch, narrow pitch (pressure building) | Custom pitch & length supported |
| Kneading Block Lobe Types | Double-lobe, triple-lobe meshing kneading block; angles: 30°/45°/60°/90° adjustable shear intensity | Smooth chamfer optional |
| Spline Standard | Involute spline, Grade 6 precision tooth profile, uniform assembly clearance | No shaking during high-speed rotation |
| Optional Raw Alloy Materials | WR5 powder metallurgy alloy, W6Mo5Cr4V2 (6542), 45# nickel alloy, 38CrMoAl nitrided steel | — |
| Whole-piece Hardness | Threaded element & kneading block HRC 58 – 62 uniform hardness | ±1 HRC |
| Surface Treatment | Mirror fine grinding / full sandblasting matte anti-stick finish | Ra 0.4–3.2μm customizable |
| Intermeshing Clearance | 0.18–0.35mm matched to corresponding OD model | Stable self-wiping performance |
| Max Continuous Working Temperature | ≤380℃ long-term high temperature resistance | No thermal softening deformation |
| Customizable Items | Outer diameter, pitch, block length, kneading angle, single-end chamfer, surface roughness | Custom drawing processing acceptable |
Functional Difference & Core Advantages
Threaded Element & Threaded Conveying Block (Conveying Section Parts)
- Adjustable pitch design realizes flexible throughput control: wide pitch for high feeding capacity, narrow pitch for material compression and melt pressure build-up.
- Smooth spiral surface reduces flow resistance, lower extruder power consumption, improve granulator production efficiency.
- High hardness alloy base resists abrasion from calcium carbonate, talc and mineral powder, long service life for high-filler production.
- Self-wiping spiral profile avoids material residue, easy formula switching without frequent shutdown cleaning.
Meshing Kneading Block (Mixing Homogenization Parts)
- Multi-angle staggered meshing lobes provide balanced shear force, fully disperse pigment, glass fiber and inorganic fillers to ensure uniform pellet color and stable mechanical performance.
- Optional low-shear single-end chamfer kneading block prevents heat-sensitive PLA/PBAT plastic degradation and black speck defects.
- Precise meshing gap eliminates material stagnation dead zone, avoid local overheating carbonization during continuous pelletizing.
- Modular combination freely collocate with threaded blocks to design customized screw configuration according to different plastic formulas.
Universal Advantages of All Series Meshing Accessories
- Uniform HRC58-62 high hardness, excellent wear & corrosion resistance, greatly reduce replacement frequency and production downtime.
- 5-axis CNC precision machining ensures consistent dimensional tolerance, stable operation without abnormal vibration and noise.
- Complete matching with twin screw spline shaft and alloy barrel, plug-and-play replacement without equipment modification.
- Two surface treatment options: mirror polishing for easy cleaning; sandblasting matte finish to prevent viscous melt adhesion.
Main Application Scenarios for Plastic Granulator
- Color masterbatch, carbon black & functional filler masterbatch pelletizing
- Glass fiber / mineral powder modified engineering plastic compounding
- WPC wood plastic composite plastic granulation production line
- Biodegradable PLA, PBAT, starch composite plastic pelletizing
- Flame retardant, anti-static, medical & food special plastic modification
- Waste plastic recycling devolatilization and regenerated pellet making
- Laboratory small twin screw granulator formula test & medium batch production
Quality Inspection & After-Sales Service
- Full production inspection flow: raw material spectrum component test → CNC precision grinding → spline & pitch size calibration → vacuum heat treatment → hardness test → surface roughness inspection before shipment.
- ISO9001 certified factory manufacturing, all twin screw granulator accessories meet international extrusion equipment spare part standards.
- Export anti-rust oil + fumigated wooden case packaging to protect alloy surface during long-distance sea transportation.
- Standard OD threaded elements and kneading blocks in stock for delivery within 3–7 working days; customized non-standard pitch, kneading angle and chamfer parts delivered in 15–30 working days.
- 6-12-month quality warranty, professional technical team provides screw combination configuration scheme guidance according to customer plastic formulas.
FAQ
Q1: What is the function of threaded element and kneading block in twin screw plastic granulator?
A: Threaded element/threaded block are responsible for material conveying and pressure adjustment; meshing kneading block provides shear mixing to disperse fillers, pigments and additives for uniform plastic pellet performance.
Q2: What is the hardness of your twin screw threaded and kneading meshing block?
A: All alloy threaded elements and kneading blocks are vacuum heat treated to stable uniform HRC58–62 hardness for long-term wear-resistant granulation production.
Q3: What is the difference between wide pitch and narrow pitch threaded block?
A: Wide pitch threaded block offers larger throughput for high-output feeding; narrow pitch threaded block compresses materials to build melt pressure, suitable for melting and exhaust sections.
Q4: Can kneading block handle long fiberglass reinforced plastic?
A: Yes, we supply low-shear single-end chamfer meshing kneading block, which reduces fiber breakage and retains fiber length to guarantee finished plastic tensile strength.
Q5: Are these threaded and kneading parts compatible with JSW TEX twin screw granulator?
A: 100% OEM interchangeable. All outer diameter, center distance and spline parameters strictly follow TEX/STS original equipment standards for direct replacement.
