Parallel Twin Screw Extruder Screw Elements W6Mo5Cr4V2 For PP PE PVC
| Brand Name: | OEM |
| Model Number: | CSE015 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C,WesternUnion,Negotiable |
| Supply Ability: | 8000pcs/month |
Parallel extruder screw elements
,W6Mo5Cr4V2 extruder screw elements
,PVC twin screw elements

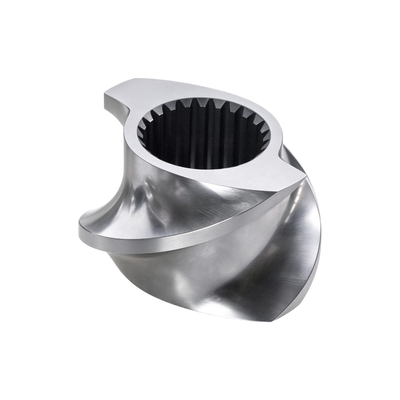

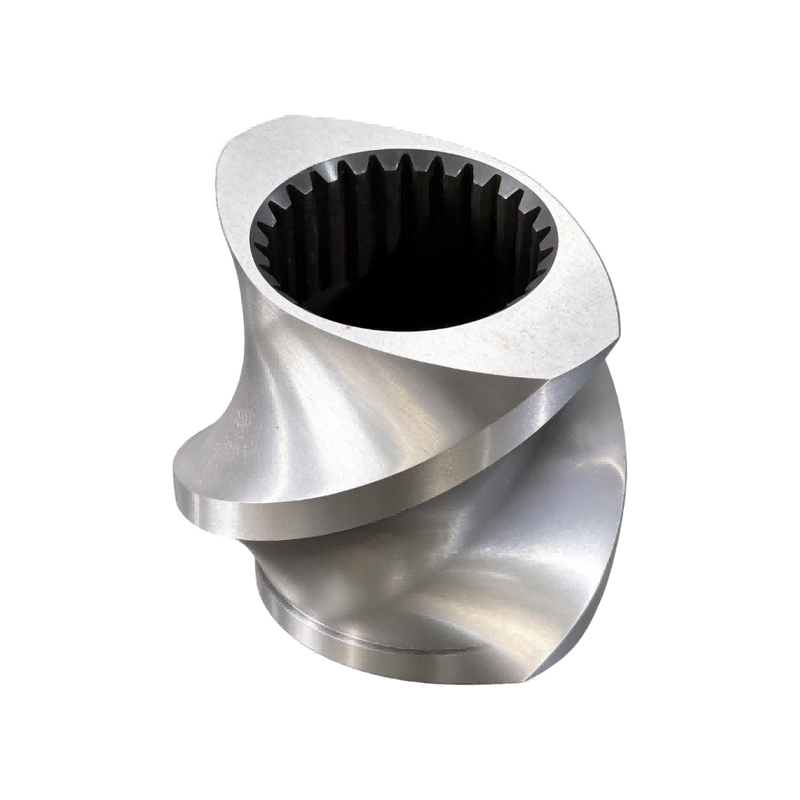

Parallel Twin Screw Extruder Conveying Screw Elements W6Mo5Cr4V2 for PP PE PVC
Product Description
The Parallel Twin Screw Extruder Conveying Screw Elements are designed for continuous plastic extrusion and compounding applications. They help transport plastic materials through the extrusion barrel while maintaining a stable and consistent material flow.
These screw elements use W6Mo5Cr4V2 high-speed tool steel, which provides high hardness, good wear resistance, and reliable mechanical performance. The material suits extrusion processes where screw elements experience continuous friction and mechanical stress.
The precision-machined conveying elements feature an accurate internal spline for connection with the corresponding twin screw shaft. Proper dimensional control helps maintain smooth assembly and stable screw rotation.
These screw elements can work with different PP, PE, PVC, and other thermoplastic materials. We can also manufacture different conveying geometries according to the extruder model, shaft specification, processing material, and customer's technical drawing.
Key Features
-
W6Mo5Cr4V2 high-speed tool steel
-
Designed for parallel twin screw extruders
-
Suitable for conveying applications
-
High hardness and wear resistance
-
Precision CNC machining
-
Accurate spline connection
-
Stable material conveying
-
Suitable for PP, PE and PVC processing
-
Custom screw element configurations available
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Conveying Screw Element |
| Extruder Type | Parallel Twin Screw Extruder |
| Application | Plastic Extrusion & Compounding |
| Material | W6Mo5Cr4V2 |
| Material Type | High-Speed Tool Steel |
| Function | Material Conveying |
| Processing Materials | PP, PE, PVC and Thermoplastics |
| Connection Type | Internal Spline |
| Flight Configuration | According to Screw Design |
| Flight Direction | Right-Hand / Left-Hand |
| Element Diameter | According to Extruder Model |
| Element Length | According to Customer Drawing |
| Spline Profile | According to Shaft Specification |
| Dimensional Tolerance | According to Technical Drawing |
| Surface Finish | Precision CNC Machined |
| Heat Treatment | According to Material and Application |
| Hardness | According to Heat Treatment Requirement |
| Wear Resistance | High |
| Screw Configuration | Customizable |
| OEM Replacement | Available |
| Custom Manufacturing | Available |
| Quality Inspection | Material, Dimension, Hardness, Spline & Surface Inspection |
Applications
These conveying screw elements are suitable for twin screw extrusion processes involving:
-
PP compounding
-
PE compounding
-
PVC processing
-
Filled plastics
-
Engineering plastics
-
Polymer compounding
-
Masterbatch production
-
Other thermoplastic extrusion applications
Custom Manufacturing
CONLIN can manufacture screw elements in different diameters, lengths, flight configurations, spline profiles, and materials.
Please provide the extruder brand and model, shaft diameter, original part number, technical drawing, or sample when requesting a quotation. We can check the required specifications and provide a suitable conveying screw element.
