ZE52 Conveying Element For Co-Rotating Twin Screw Extruder HRC 58–62 52mm
| Brand Name: | OEM |
| Model Number: | CSE009 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Negotiable |
| Supply Ability: | 8000pcs/month |
ZE52 twin screw elements
,HRC 58 twin screw elements
,52mm twin screw extruder elements

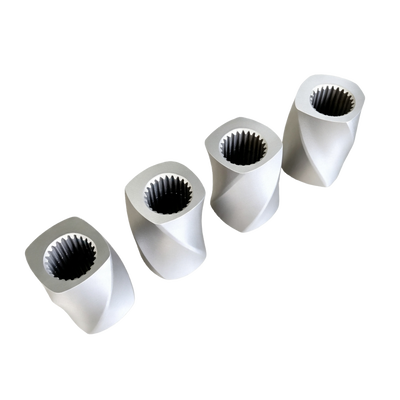

ZE52 Conveying Element for Co-rotating Twin Screw Extruder
ZE52 conveying element is standard modular screw spare part matching ZE52 parallel twin screw extruder. It adopts integrated CNC machining with standard involute spline inner bore, fully interchangeable with original ZE52 screw assembly.
This conveying screw segment features wide-pitch smooth spiral curved surface, large deep flow channel without sharp shear edges. It focuses on stable forward material transportation with low shear force, effectively avoiding material backflow, dead zone and blockage during extrusion processing.
- Perfect ZE52 Model Matching
Fully fit ZE52 twin screw extruder shaft, uniform spline size, directly assembled and combined with kneading blocks, barrier elements, reverse elements.
- High Efficient Low-Shear Conveying Design
Large pitch & spacious flow channel improves feeding volume, minimizes material retention; ideal for heat-sensitive raw materials.
- Premium Wear & Corrosion Resistance
Base material: 38CrMoAlA alloy steel, whole piece vacuum nitriding treatment, surface hardness HRC 58–62. Optional 316 stainless steel for food, feed, puff snack extrusion.
- Smooth Polished Surface
Fine mirror polishing eliminates material adhesion, easy to disassemble, clean and maintain.
- Customizable Specifications
Support custom pitch, length, width, surface treatment according to extrusion formulas (plastic compounding, food extrusion, masterbatch granulation).
- Plastic Industry: PP/PE/PLA/PET compounding, color masterbatch, filler modification, biodegradable plastic granulation
- Food & Feed Industry: Puffed snack, pet feed, aquatic feed, corn extrusion food
- New Material: Biodegradable material, filler composite, polymer blending
- Chemical Industry: Plastic additive, resin modification
| Item | Parameter |
|---|---|
| Model | ZE52 Conveying Element |
| Matching Extruder | ZE52 Co-rotating Twin Screw Extruder |
| Material | 38CrMoAlA / 316 Stainless Steel |
| Surface Hardness | HRC 58–62 (Nitrided) |
| Inner Hole | Standard Involute Spline |
| Surface Treatment | Vacuum Nitriding / Mirror Polishing |
| Custom Service | Pitch, Length, Alloy Material Customization |
We supply full series ZE52 twin screw elements including conveying block, kneading block, barrier screw, reverse element. Send us your drawing or extrusion formula, we offer free technical matching suggestion and factory direct wholesale price.
