92SC Extruder Screw Elements For Plastic And Rubber Twin Screw Extruders
| Brand Name: | OEM |
| Model Number: | ESE004 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 8000pcs/month |
92SC Extruder Screw Elements
,41CrAlMo7 Extruder Screw Elements
,38CrMoAlA screw elements

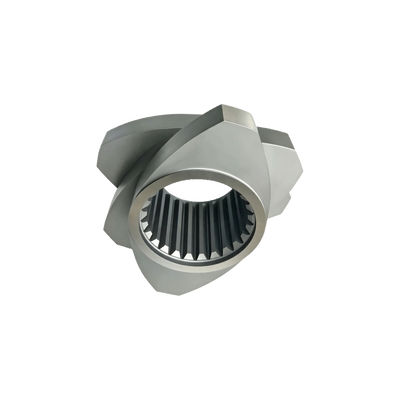

92SC extruder screw elements for plastic and rubber twin screw extruders
We manufacture high-precision 92SC Extruder Screw Elements for plastic and rubber twin screw extruders. Furthermore, we craft every part from premium alloy steel or bimetallic materials. As a result, our components resist heavy wear, deliver tight tolerances, and maintain stable output in your plant.
| Feature / Property | Specification Summary |
|---|---|
| Product Model | 92SC Extruder Screw Elements |
| Compatible Equipment | Co-rotating Twin Screw Plastic & Rubber Extruders |

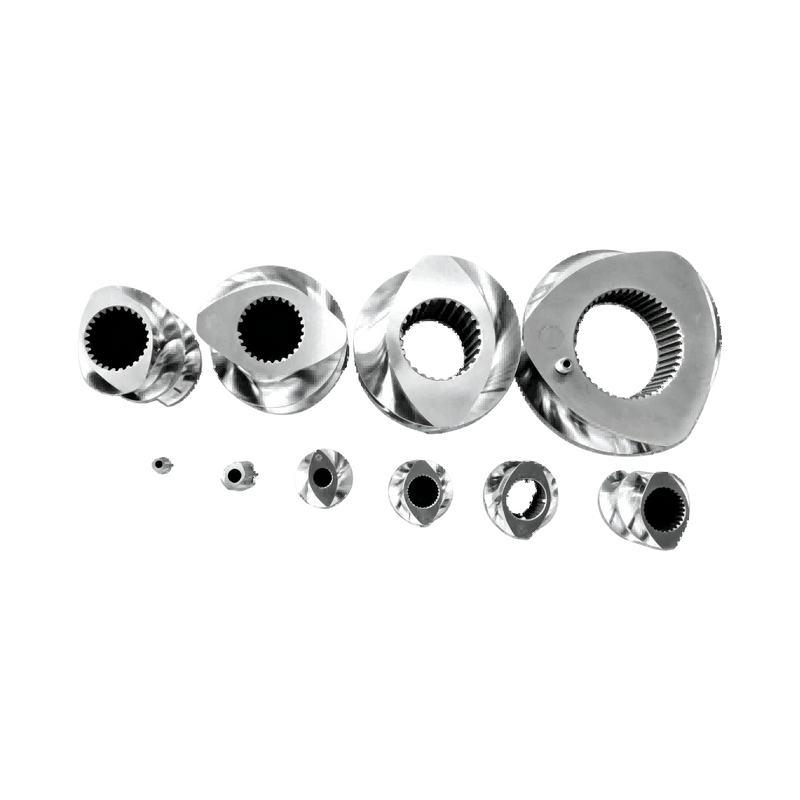

| Component Types | Conveying Elements, Kneading Blocks, Mixing Segments |
| Primary Materials | 38CrMoAlA, 41CrAlMo7, D2 Tool Steel, HIP Powder Alloys |
| Key Processing | Precision CNC Thread Grinding + Vacuum Nitriding |
| Surface Hardness | 900 – 1100 HV (Nitrided) / 58 – 65 HRC (Tool Steel) |
| Machining Tolerance | ±0.01 mm |
| Lead Time | 7–10 days (Standard Stock) / 15–20 days (Custom Alloys) |
Engineered for Plastic & Rubber Processing:
We design these 92SC elements to withstand high torque loads and aggressive shear forces. Consequently, they process highly viscous rubber compounds and tough thermoplastics smoothly.Superior Wear and Corrosion Resistance:
We offer specialized alloy steels, bimetallic cladding, and HIP powder metallurgy materials. Therefore, our parts resist heavy abrasion from fillers like carbon black, silica, and glass fibers.Precision CNC Thread Grinding:
We machine every element to exact dimensional tolerances. Thus, you achieve tight inter-meshing clearances, efficient self-cleaning performance, and minimal power consumption.100% Direct Fit Guarantee:
We manufacture all parts strictly according to standard 92SC factory specifications. Because of this, your maintenance workers can install them seamlessly during scheduled machine overhauls.
| Specification Parameter | Technical Detail / Value |
|---|---|
| Model Designation | 92SC Extruder Screw Elements |
| Compatible Extruder Type | Co-rotating Twin Screw Extruders (Plastic & Rubber) |
| Element Types | Conveying Elements, Kneading Blocks, Mixing Segments, Special Profiles |
| Base Materials | 38CrMoAlA, 41CrAlMo7, D2 / 1.2379 Tool Steel, HIP Powder Alloys |
| Surface Hardness | 900 – 1100 HV (Nitrided) / 58 – 65 HRC (Tool Steel / Bimetallic Cladding) |
| Nitrided Layer Depth | 0.4 mm – 0.8 mm |
| Machining Accuracy | Precision CNC Thread Grinding, Tolerance ±0.01 mm |
| Surface Roughness (Ra) | < 0.4 µm (Standard) / < 0.2 µm (Polished) |
| Quality Certification | ISO 9001, Material Test Certificate (MTC), Full Inspection Report |
Our heavy-duty 92SC screw elements perform reliably across demanding rubber and plastic processing operations:
Rubber Compounding & Extrusion: Processing natural rubber, EPDM, SBR, and silicone rubber with carbon black or silica additives.
Thermoplastic Elastomer (TPE/TPR/TPU) Processing: Homogenizing soft and semi-rigid elastomers for automotive and consumer goods.
Engineering Plastics Compounding: High-capacity processing of Polyamide (PA), Polycarbonate (PC), PET, and PBT reinforced with glass fiber.
Masterbatch & Additive Manufacturing: Manufacturing high-density color concentrates, flame retardant batches, and filler masterbatches.
Recycled Polymer Repelletizing: Handling post-industrial and post-consumer plastic scrap while maintaining steady conveying pressure.
A: Yes, absolutely. We manufacture all 92SC screw elements strictly to standard dimensions and tolerances. Furthermore, we inspect all key dimensions on precision measuring equipment before delivery. Consequently, our parts fit your machine perfectly without modifications.
A: Your choice depends on your formulation. For standard rubber or plastic compounding, we recommend 38CrMoAlA nitrided steel. However, if your formula contains abrasive fillers like glass fiber or silica, we recommend tool steel (D2) or HIP powder alloys. As a result, you extend service life significantly and avoid frequent downtime.
A: We keep standard raw steel profiles and common 92SC geometries in stock continuously. Therefore, we ship standard replacement parts within 7 to 10 working days. However, specialized bimetallic coatings or complex custom profiles may require 15 to 20 days.
