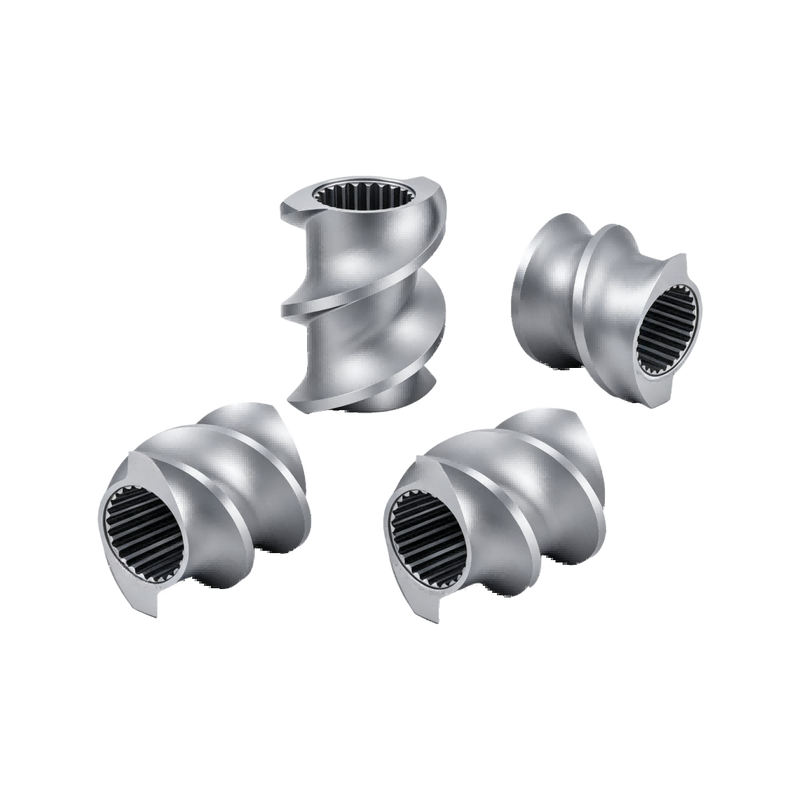

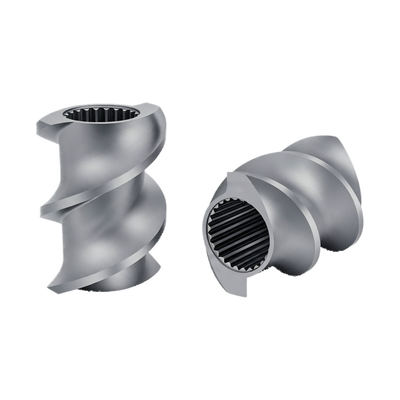

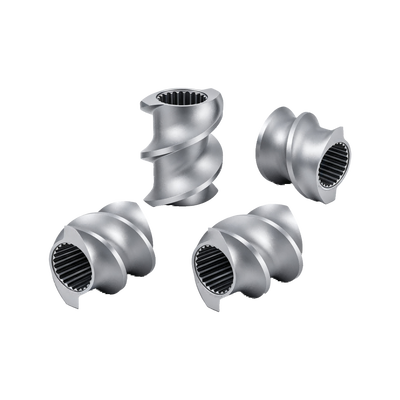

SK 96/96 Forward Conveying Element Twin Screw Extruder Feeding Block
| Brand Name: | OEM |
| Model Number: | ERP005 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 8000pcs/month |
SK 96/96 conveying element
,Forward conveying element
,Forward extruder replacement parts
SK 96/96 Forward Conveying Elements | Twin Screw Extruder Feeding Block
large pitch 96/96 screw element, self-cleaning SK feeding block, splined bore twin screw conveying element
SK 96/96 forward conveying elements are special large-pitch feeding screw blocks for Ky SK96 series co-rotating parallel twin screw extruders. The model code 96/96 means pitch 96mm, effective axial length 96mm, standard single flight forward spiral design.
We design this SK conveying element with cut flat feeding surface on spiral edge. It holds more solid raw material at feed throat, eliminates material bridging and backflow completely, delivers 20%-30% higher throughput than standard equal-pitch conveying blocks.
All SK 96/96 forward conveying elements match original splined shaft dimensions, direct replacement for Ky SK96 extruder spare parts. We support full OEM customization for all twin screw brands.
96mm ultra-large pitch forms deep wide screw channel. Raw plastic pellets, powder, glass fiber compounds pass through quickly. Short material residence time avoids thermal degradation for sensitive polymer production like masterbatch, biodegradable plastic.
Unique cutaway spiral structure (SK special design) expands material intake area. No dead zone inside barrel, self-cleaning performance stops carbon black spot buildup during long continuous production runs.
Standard multi-tooth splined hole, machining tolerance ±0.02mm. Perfect lock onto extruder splined shaft, zero sliding during high-speed rotation up to 600rpm. Full interchangeability with factory original SK96 conveying segments.
Optional raw materials: W6Mo5Cr4V2 high speed steel, 1.2343 hot work tool steel, HIP powder alloy. Hardness reach HRC 58-62 after integral nitriding treatment. Suitable for high-abrasive formulas with talc, calcium carbonate, glass fiber filler.
| Item | Standard Parameter of SK 96/96 Forward Conveying Elements |
|---|---|
| Model No. | SK 96/96 Forward Conveying Element |
| Pitch | 96 mm |
| Effective Length | 96 mm |
| Flight Structure | Single flight forward spiral (Right-hand) |
| Internal Spline | Standard spline for Ky SK96 extruder core shaft |
| Standard Material | W6Mo5Cr4V2 / 1.2343 / Powder Metallurgy Alloy |
| Surface Treatment | Whole piece nitriding, mirror polishing |
| Hardness | HRC 58 – HRC 62 |
| Matching Extruder | Ky SK96 co-rotating twin screw extruder |
| Main Working Section | Feed throat, primary conveying zone |
| Custom Service | Material, spline size, pitch, marking engraving |
- Plastic Compounding: Color masterbatch, filler modified plastic, PA/PP/PC engineering plastic granulation
- Biodegradable Material: PLA, PBAT, starch composite extrusion
- Chemical Reaction Extrusion: Devolatilization, graft modification, reactive compounding
- Food & Feed Extrusion: High-capacity feed pellet, food twin screw processing
- Recycled Plastic: Waste plastic re-granulation with high throughput demand
Install SK 96/96 forward conveying elements at the first feeding section of SK96 extruder barrel. Pair with small pitch 72/72, 56/56 conveying blocks downstream to form gradual compression gradient.
For high-filler formulas: Add two pieces SK96/96 feeding elements at feed inlet to solve poor feeding and material overflow issues.
For thermal-sensitive materials: Use single SK 96/96 block only, reduce residence time to prevent polymer yellowing and decomposition.
A1: The first number 96 refers to spiral pitch 96mm, the second 96 is the axial effective length of this screw block. SK stands for special feeding element with cut flat spiral edge design, only used for extruder feed throat to boost intake volume.
A2: Standard version matches Ky SK96 series co-rotating twin screw extruder. We customize splined bore size for Leistritz, Coperion, Jwell, Berstorff and other domestic & international twin screw machines.
A3: Under normal glass fiber 30% filler working condition, service life reaches 8000-12000 production hours. We provide powder alloy upgrade option for ultra-abrasive formulas to double wear resistance.
A4: Yes. We produce full SK series feeding blocks including SK44/44, SK56/56, SK72/72, SK96/96. Custom pitch, length, spline tooth quantity and laser marking are supported.
A5: Stock standard W6Mo5Cr4V2 models ship within 3-5 working days. Custom material or special spline orders take 15-25 days. Bulk wholesale orders get discounted unit price.
Full Text CTA: Send your extruder model, required material and order quantity to our sales team. We provide free screw combination technical consultation, material selection guide and factory direct bulk price for SK 96/96 forward conveying elements. Reach us via email or WhatsApp for samples & drawing verification.
