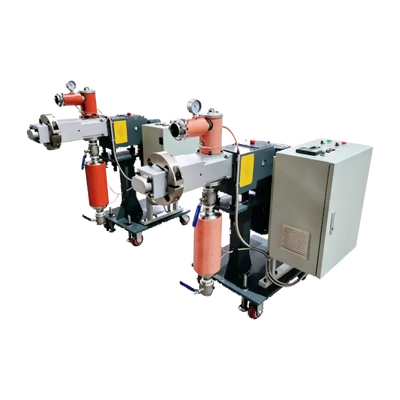

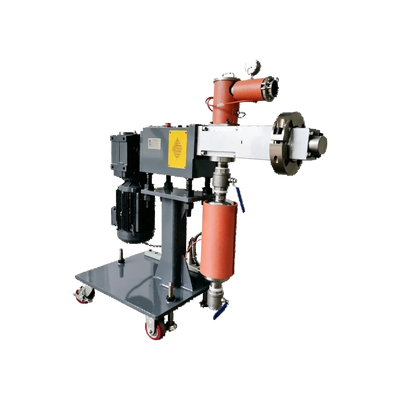

CWJ70 Extruder Side Feeder Alloy Steel Side Feeding Machine For 70/75 Twin Screw Extruder
|
CWJ70 Extruder Side Feeder Alloy Steel Side Feeding Machine For 70/75 Twin Screw Extruder
| Brand Name: | OEM |
| Model Number: | ESF004 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 8000pcs/month |
CWJ70 Extruder Side Feeder
,5.5KW Extruder Side Feeder
,Cr12MoV twin screw feeder design
CWJ70 Twin Screw Side Feeder | Alloy Steel Side Feeding Machine for 70/75 Twin Screw Extruder
CWJ70 twin screw side feeder is a matched auxiliary feeding device for 70 and 75 series co-rotating twin screw extruders. It uses self-wiping segmented twin screws to deliver stable quantitative feeding of various fillers.
It handles short glass fiber, talcum powder and all kinds of inorganic powder raw materials. The whole machine uses wear-resistant alloy metal materials, supports long continuous production runs, and keeps feeding output steady without material blockage or residue.
| Item | CWJ70 Specific Parameter |
|---|---|
| Barrel Diameter | 71 mm |
| Screw Diameter | 69 mm |
| Screw Groove Depth | 17.5 mm |
| Screw Effective Length | 426 mm |
| L/D Ratio | 6:1 |
| Matching Motor Power | 5.5 KW |
| Reducer Transmission Ratio | 2.5:1 |
| Max Screw Rotation Speed | 600 rpm |
| Twin Screw Center Distance | 53.5 mm |
| Feeding Barrel Hole Size | 110*180 mm |
| Flange Connector Multiple Sizes | 144mm / 90mm / 76mm |
| Fastener Standard | M12, φ12H7 tolerance |
| Main Body Raw Material | Alloy Steel Barrel, Cr12MoV Screw, WR12 Drive Shaft, 316L Stainless Steel Hopper |
| Matching Extruder Model | 70 / 75 twin screw extruder |
| Raw Material Type | Maximum Feeding Output |
|---|---|
| 3-6mm Short Glass Fiber | ~420 kg/h |
| 1250 Mesh Talcum Powder (5-30μm, bulk density 0.4-0.45kg/L) | ~440 kg/h |
| 3000 Mesh Fine Talcum Powder (1-20μm, bulk density 0.3-0.35kg/L) | ~270 kg/h |
- SEW Motor: Output stable adjustable power to drive twin screws
- Precision Gearbox: Transfer torque, adjust screw rotation speed steadily
- 316L Stainless Steel Hopper: Store raw materials, avoid powder corrosion
- Twin Screw Segments: Mix and push fillers evenly, self-wipe inner barrel wall
- Alloy Steel Barrel: Fix screw shafts, hold materials during feeding process
- Adjustable Support Bracket: Stabilize whole feeder, adjust height to align extruder
-
Durable long-life gearbox unit
We independently design and manufacture all gearboxes. Gear teeth pass six-level precision grinding and carburizing hardening treatment. Resin sand casting and CNC machining lock high dimensional accuracy. Imported German bearings reduce operation noise and extend service life. Spline sleeve structure lets you separate gearbox and screws quickly for maintenance.
-
High wear-resistant metal core parts
Barrel uses alloy steel. Screws adopt Cr12MoV anti-abrasion material. Drive shaft uses WR12 wear-resistant steel. Hopper selects 316 stainless steel, resists acid and powder corrosion, fits long-term powder feeding work.
-
Self-cleaning twin screw conveying design
Segmented self-wiping screw profiles scrape residual materials off barrel inner walls. No material buildup inside the barrel, cut cleaning time between different material batches.
-
Stable output for multiple inorganic raw materials
It adapts coarse fiber and ultra-fine talcum powder. Different materials keep fixed feeding volume, guarantee consistent formula ratio during plastic compounding production.
-
Perfect compatibility with 70/75 twin screw extruders
All flange sizes, center distance and L/D parameters match 70 and 75 series twin screw extruders directly. Height-adjustable bracket and movable casters support fast installation and position adjustment.
- Glass fiber reinforced plastic granulation
- Talcum powder filled plastic modification
- Inorganic filler masterbatch production
- 70/75 parallel twin screw extruder auxiliary feeding
- Petrochemical composite material blending
Q1: Which twin screw extruder models fit CWJ70 side feeder?
A1: It directly matches 70 and 75 series co-rotating twin screw extruders.
Q2: What material makes the feeding hopper of CWJ70 feeder?
A2: The hopper uses 316L stainless steel to resist powder corrosion.
Q3: What is the maximum rotation speed of CWJ70 twin screw?
A3: The screw can run up to 600 rpm with 5.5KW driving motor.
Q4: How much material can CWJ70 feed for short glass fiber?
A4: It reaches around 420 kg per hour for 3-6mm short glass fiber.
Q5: Why the gearbox of this side feeder runs quietly?
A5: Gear teeth get hardening grinding, with imported German bearings to lower running noise.
