JCW63 Co-Rotating Twin Screw Feeder For Plastic Twin Extruder
| Brand Name: | OEM |
| Model Number: | ESF002 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,Negotiable |
| Supply Ability: | 8000pcs/month |
JCW63 twin screw feeder
,Co-Rotating twin screw feeder
,62.8mm side feeder

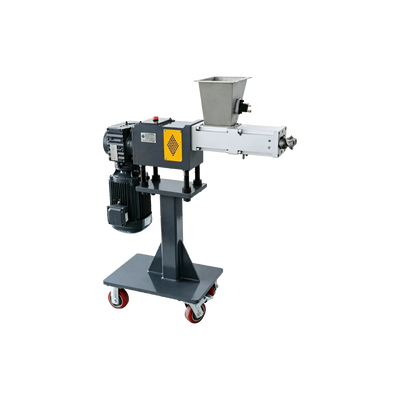

JCW63 Co-Rotating Twin Screw Side Feeder for Plastic Twin Extruder
JCW63 side feeder matches parallel co-rotating twin screw extruders. It adds fillers, additives and auxiliary materials into the main extrusion barrel from the side.
The machine adopts twin-screw conveying design. It runs stably with low noise. Users take apart barrel and screw easily for quick cleaning. It fits plastic compounding, wood-plastic, powder coating and food puff production lines.
| Item | Technical Spec |
|---|---|
| Model | JCW63 Side Feeder |
| Screw Structure | Twin co-rotating screw |
| Screw Diameter | 62.8 mm |
| L/D Ratio | 8.75:1 |
| Drive Motor | SEW motor, 5.5 kw |
| Center Distance | 48 mm |
| Barrel Segments | 2 sections |
| Max Screw Rotate Speed | 305 rpm |
| Max Feeding Capacity | ≤600 kg/h |
| Overall Dimension | 1300*650*1230 mm, height adjustable |
| Core Components | Screw, gearbox, spline housing, feeding barrel, hopper, mobile bracket |
| Matching Equipment | Twin screw extruder for plastic, wood-plastic, food puffing |
- Stable twin-screw feeding
Double screws evenly push materials. Feeding speed stays consistent without material blockage. Max output hits 600kg/h for high-volume production.
- Low noise SEW driving unit
Standard SEW motor pairs with matched gearbox. The whole unit runs quietly during long continuous shifts.
- Fast disassembly & easy cleaning
Split barrel structure lets you pull out screws directly. No dead corners trap residual powder or plastic, cut downtime between material batches.

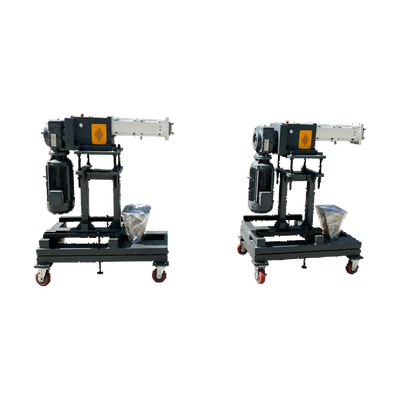

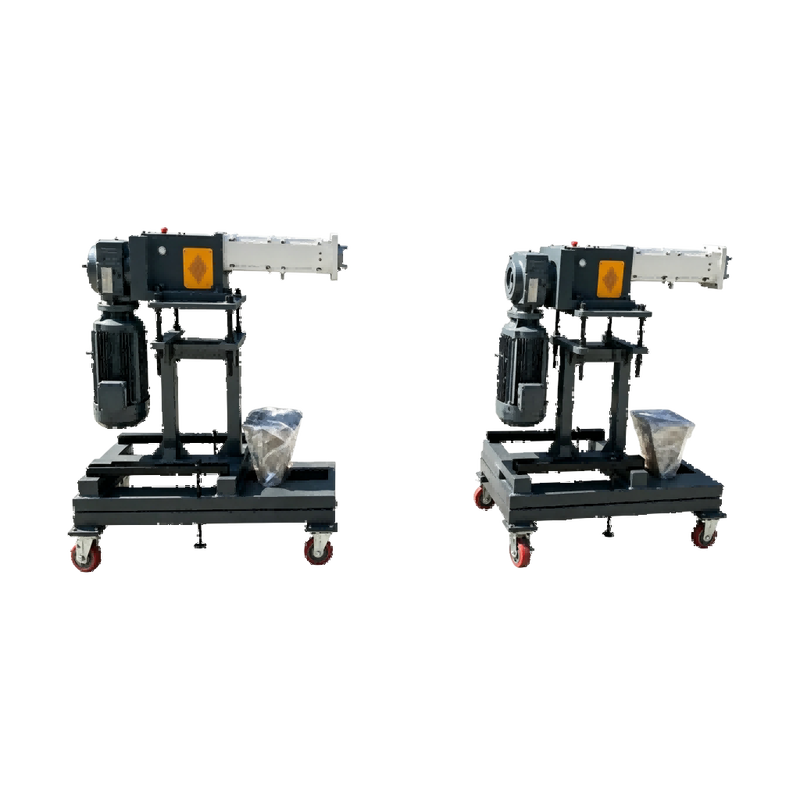

- Flexible movable bracket with height adjustment
Four rolling casters support free position shift. Adjustable stand height fits different extruder barrel heights.
- Wide multi-industry compatibility
Work for plastic modification, wood-plastic granulation, powder coating and puff food processing.
- SEW Motor: Supply stable driving power
- Gearbox: Transfer torque to drive twin screws
- Feeding Hopper: Store raw materials for steady feeding
- Twin Screw Assembly: Mix and transport filler materials
- Barrel Body: Hold screws and pre-mix raw materials
- Mobile Support Bracket: Fix the whole feeder, adjust height and move freely
- Plastic masterbatch & modified plastic granulation
- Wood plastic composite extrusion
- Powder coating raw material blending
- Inflated food puffing production
- Auxiliary feeding for all parallel twin screw extruders
Q1: What motor does JCW63 side feeder use?
A1: It uses 5.5kw SEW drive motor with matched gearbox.
Q2: What is the maximum feeding capacity of this twin screw side feeder?
A2: Max feeding load reaches 600kg per hour.
Q3: Is this side feeder easy to clean?
A3: Yes, split barrel design lets you take out screws quickly for full cleaning.
Q4: What industries can this side feeder serve?
A4: Plastic, wood-plastic, powder coating and inflated food production lines.
Q5: Can we move and adjust the height of this feeder?
A5: Yes, it has rolling casters and adjustable stand height.
