40mm Lead 40mm Length Forward Twin Screw Mixing Block TME 40/40 R Toothed Mixing Element

TME 40/40 R Toothed Mixing Element | 40mm Lead 40mm Length Forward Twin Screw Mixing Block

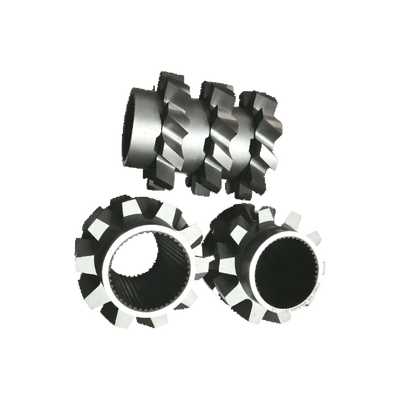

Precision machined spline inner hole of TME 40/40 R twin screw mixing component

TME 40/40 R is a standard forward toothed mixing element customized for co-rotating twin-screw extruders, with a 40mm lead and 40mm axial length. Manufactured with precision CNC machining, this distributive mixing component features symmetrical multi-angle tooth profiles and standard internal spline bore for seamless mounting on screw shafts.

The forward tooth structure creates continuous splitting, recombining and stretching of melt flow without generating excessive shear heat. It delivers uniform distributive mixing for color masterbatch, biodegradable plastics, TPE/TPR blends, filler homogenization and low-shear modification processes. The evenly distributed tooth ridges repeatedly divide polymer melt layers, eliminating uneven pigment dispersion, agglomerates and flow dead zones inside the barrel.

Made of wear-resistant nitrided 38CrMoAl or W6Mo5Cr4V2 high-speed steel upon request, the surface undergoes fine polishing to reduce material adhesion and simplify screw purging during color/material changeover. Its compact 40*40mm dimension allows flexible layout within screw barrels, matching TSE40, ZE40, TEX40 and other 40-series twin screw extruder equipment.

1. Low-shear distributive mixing, effectively avoid polymer thermal degradation for heat-sensitive materials
2. Symmetric tooth design realizes multi-layer melt splitting, superior color dispersion performance
3. Compact size, flexible combination with conveying blocks, kneading blocks and barrier elements
4. Smooth polished surface minimizes material residue, reduces machine cleaning time
5. High hardness wear-resistant steel options for long service life under mineral filler, talc or calcium carbonate processing
6. Standard spline interface, universal compatibility with mainstream twin-screw extruder brands

• Color masterbatch production (PP, PE, ABS, PET masterbatch)
• Biodegradable PLA/PBAT compounding
• TPE, TPU soft plastic blending
• Low-filler plastic homogenization
• Food-grade plastic extrusion (316 stainless steel optional)
• PVC, PP anti-aging additive uniform mixing

A1: TME 40/40 R is a forward toothed distributive mixing block with 40mm lead and 40mm length. It is widely applied in twin screw extruders for homogenizing color pigments, blending TPE/PLA biodegradable materials and mixing low-filler plastics with low shear to prevent melt overheating.

A2: Standard material is nitrided 38CrMoAl steel. We provide W6Mo5Cr4V2 high-speed steel and HIP powder alloy for high-wear working conditions, as well as 316 stainless steel for food extrusion requirements.

A3: This 40*40mm toothed mixing element matches all 40-series co-rotating twin screw extruders, including TSE40, ZE40, TEX40. Custom inner spline profiles are supported to fit different brand screw shafts.

A4: Forward TME 40/40 R delivers smooth melt transportation with mild mixing and low backpressure, suitable for main mixing sections. Reverse toothed elements create high backpressure for devolatilization and reaction extrusion.

A5: No. The toothed design of TME 40/40 R focuses on distributive mixing with low shear force. It avoids breaking polymer molecular chains, perfect for heat-sensitive and degradable plastic compounding.

Need custom TME 40/40 R toothed mixing elements with special spline or hard coating? Send your twin screw extruder model and processing requirements to get factory direct quotation and technical layout suggestions for your screw barrel combination.
