Sand Blasted 177mm Mixing Screw Element Sand Blasting Surface Treatment

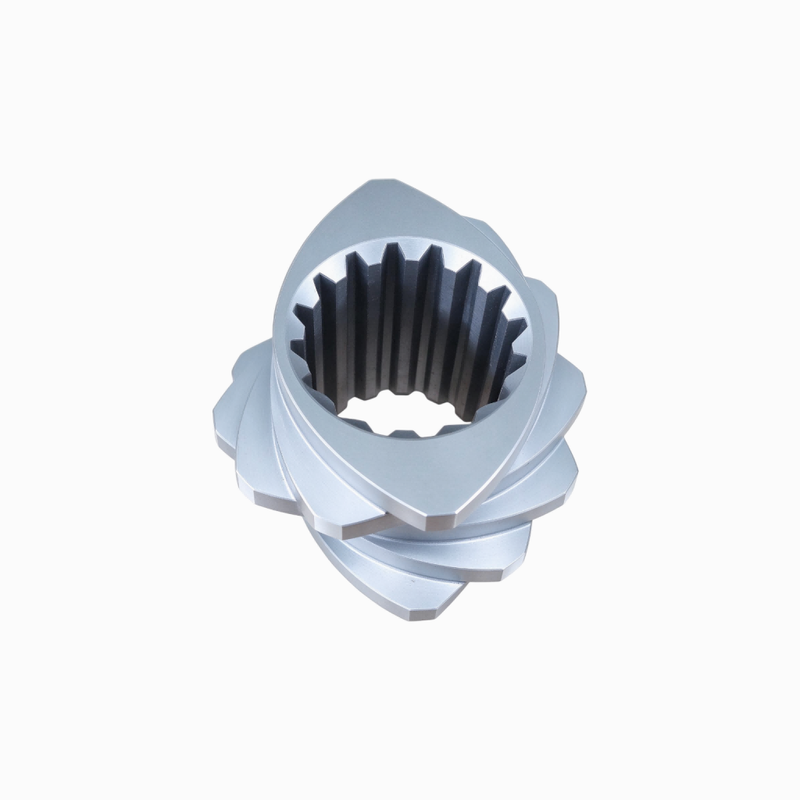

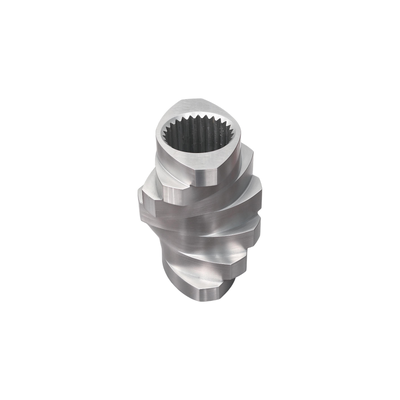

Sand Blasted Ø177 Mixing Screw Element

Product Description

The Ø177 Mixing Screw Element is a screw component designed for the mixing section of an extrusion system. Its sand blasted surface provides a uniform matte finish and can help create a consistent surface condition across the working area.

With a nominal diameter of 177 mm, this mixing screw element suits larger extrusion equipment and can be manufactured to match the required screw configuration. The mixing geometry controls material movement through the mixing zone and supports more even dispersion during processing.

CONLIN can adjust the element geometry, shaft connection, material, heat treatment, and surface treatment according to the equipment requirements. We also support production from customer drawings, samples, or existing component dimensions.

Key Features

• Ø177 mm screw element diameter
• Designed for extrusion mixing sections
• Sand blasted working surface
• Uniform surface texture
• Suitable for continuous material processing
• Geometry matched to the existing screw configuration
• Multiple material and heat-treatment options
• Custom dimensions available according to technical drawings

Product Specifications

Surface Treatment

The sand blasted surface gives the screw element a consistent textured finish. CONLIN can control the surface treatment according to the customer's technical requirements.

Different surface conditions can be considered for different processing environments. The final surface specification can follow the customer's drawing or existing component sample.

Applications

The Ø177 mixing screw element can serve various extrusion and compounding processes, including:

• Plastic compounding
• Polymer blending
• Engineering plastic processing
• Filled plastic processing
• Masterbatch production
• Additive mixing
• Thermoplastic processing
• Continuous extrusion

The exact mixing geometry depends on the material formulation and the position of the component within the screw assembly.

Custom Manufacturing

CONLIN can manufacture the Ø177 mixing screw element according to your existing component or screw design.

Please provide the extruder model, component drawing, shaft dimensions, sample, or required diameter and length. We can then match the critical dimensions and produce the element according to your configuration.
