TEX58 TEX65 45° Dispersion Kneading Block Twin Screw Extruder Mixing Kneading Disc

TEX58 TEX65 45° Dispersion Kneading Block | Twin Screw Extruder Mixing Kneading Disc

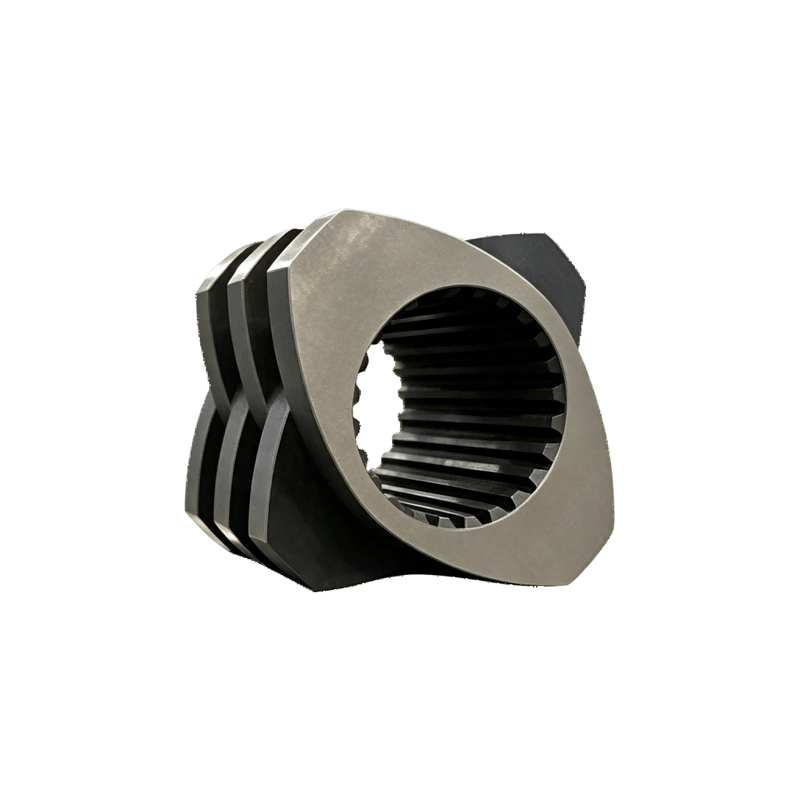

TEX58 & TEX65 45° Dispersion Kneading Block is the core mixing modular component for TEX58 and TEX65 intermeshing co-rotating twin screw extruders. The discs are arranged at a 45° staggered offset angle, achieving balanced dispersive mixing and distributive mixing.

Compared with 30° kneading blocks, it delivers stronger shear force to break filler agglomerates; compared with 60° /90° kneading blocks, it retains stable forward conveying capacity and effectively controls frictional heat accumulation, lowering thermal degradation risk for heat-sensitive polymers.

The element adopts twin-flight self-wiping geometry to eliminate material stagnant dead zones and avoid carbon buildup. Standard internal spline ensures full interchangeability with all matching TEX58 / TEX65 screw elements, freely combined with conveying segments, barrier elements and reverse screw segments to build customized screw layouts for melting and mixing zones.

Multiple wear-resistant and corrosion-resistant material grades are selectable. Precision CNC machining guarantees consistent intermeshing clearance and long-term stable compounding performance.

1. Balanced dispersion & distribution mixing: Break filler agglomerates and evenly disperse additives, pigments and reinforcing fibers inside polymer matrix.
2. Moderate shear & controllable heat generation: Ideal balance of mixing intensity and thermal load, suitable for materials sensitive to overheating.
3. Reliable self-wiping property: Prevent material retention, reduce contamination risk and simplify equipment cleaning.
4. Moderate forward conveying capacity: Maintain continuous material flow while establishing proper melt pressure.
5. Modular flexible combination: Widely deployed in melting zone, main mixing zone and side-feeding mixing section.

• 100% dimension interchangeable: Produced according to standard drawing specifications, direct replacement without mechanical modification.
• 45° optimized angle design: Perfect middle solution, balances mixing efficiency and throughput, widely adopted in general plastic modification.
• Excellent self-cleaning structure: No dead flow zones, suitable for frequent formula switching production.
• Diversified material options: Nitrided steel for common compounding; high-alloy for high-filler / glass fiber reinforced materials; stainless steel for food and medical materials.
• High precision machining: Stable gap control, consistent mixing effect for continuous mass pelletizing production.

• Color masterbatch, carbon black masterbatch, functional masterbatch production
• Glass fiber reinforced, mineral filled engineering plastics
• TPE, TPV, polymer alloy blending
• Biodegradable materials PLA, PBAT compounding
• Low-to-medium shear reactive extrusion
• Recycled plastic modification, PCR material compounding
• Food-grade and medical polymer extrusion

We supply standard TEX58 and TEX65 45° dispersion kneading blocks, and support customization of disc quantity and total length. Standard specifications have short lead time. When sending inquiry, confirm extruder model, screw layout drawing, raw material type, filler content and surface treatment requirements. All kneading blocks pass dimension tolerance inspection, hardness test and surface quality inspection before delivery.

Looking for universal mixing kneading discs for TEX58 or TEX65 twin screw extruder? Our 45° Dispersion Kneading Block achieves balanced filler dispersion while controlling shear heat, ideal for masterbatch, reinforced plastic and biodegradable material compounding. Send your screw drawing and material information to get professional material recommendation and quotation.
