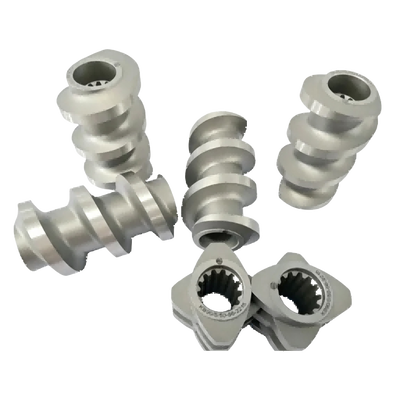

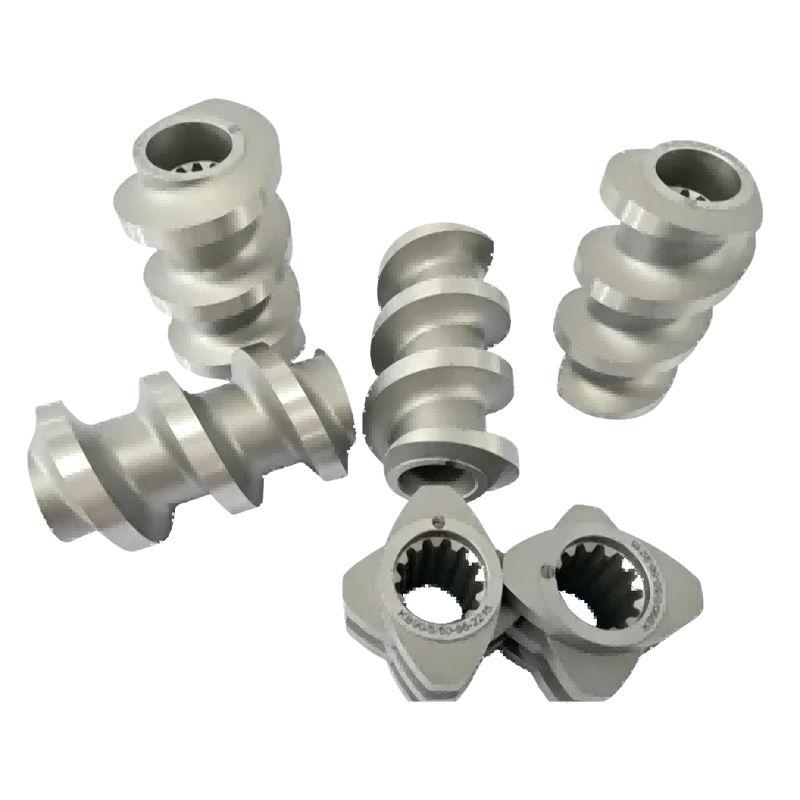

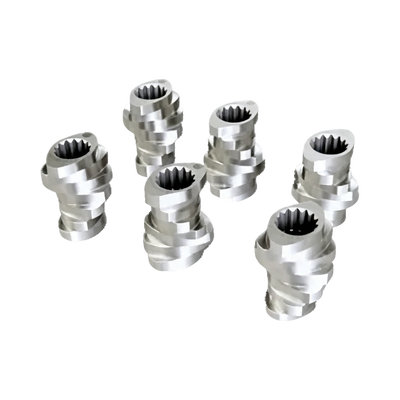

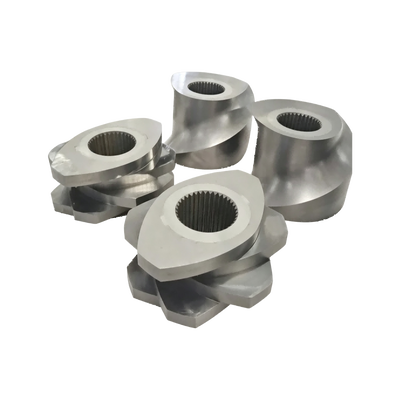

ZE60 Deep Groove Feeding Screw Element ZE60 Twin Screw Extruder Spare Parts
| Brand Name: | OEM |
| Model Number: | TSEP005 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,negotiable |
| Supply Ability: | 8000pcs/month |
ZE60 twin screw extruder spare parts
,ZE60 twin screw extruder spare parts
,60mm extruder screw elements
ZE60 Deep Groove Feeding Screw Element | ZE60 Twin Screw Extruder Spare Parts
This ZE60 deep groove feeding screw element is specially designed for the feeding zone of ZE60 co-rotating twin screw extruder. It adopts deep-flight large-volume geometry. It provides much higher material loading capacity than standard conveying elements. It effectively avoids material bridging and slipping, especially for low bulk density powder, fiber and fluffy raw materials. It features standard Erdmenger self-wiping profile. It matches all original ZE60 screw shaft dimensions perfectly. Customers widely install this feeding segment in main feed port and side feeding sections for plastic compounding, recycled plastic extrusion, filler-filled modification and masterbatch production.
- High-volume feeding capacity: Deep groove structure increases material holding space, greatly improves maximum throughput of the extruder.
- Anti-bridging & anti-slipping: Stable push for light powder, fibrous materials to prevent feeding blockage.
- Low-shear solid conveying: Gentle transportation minimizes premature melting in feeding zone.
- Excellent self-cleaning: Intermeshing self-wiping profile reduces material stagnation and carbon deposit.
- Modular assembly: Freely combine with conveying elements, kneading blocks and transition segments to build complete screw layout.
| Item | Parameter |
|---|---|
| Product Name | ZE60 Deep Groove Feeding Screw Element |
| Applicable Extruder | ZE60 Co-rotating Twin Screw Extruder |
| Outer Diameter | 60 mm |
| Inner Spline | Standard ZE60 spline, fully interchangeable |
| Profile Type | Erdmenger Intermeshing Twin Flight Self-wiping Profile |
| Optional Raw Material | 38CrMoAlA, W6Mo5Cr4V2, WR5, SAM26, CPM10V |
| Surface Treatment | Gas Nitriding, Alloy Spray Welding, HIP Powder Metallurgy Cladding |
| Hardness | 58~64 HRC |
| Customizable Parameters | Pitch, Element Length, Flight Depth |
| Working Zone | Main Feeding Section / Side Feeding Section |
✅ 100% interchangeable: Strictly follow original drawing standards, plug and play without machine modification.
✅ Precision CNC machining: Tight tolerance control to guarantee smooth rotation and self-wiping effect.
✅ Strong adaptability for hard-feed materials: Ideal for powder, fiber, low-density recycled materials which are hard to feed.
✅ Multiple wear-resistant material options: Choose suitable grade for ordinary, abrasive or corrosive processing conditions.
✅ Long service life: Professional heat treatment reduces wear frequency and lowers your production downtime.
- Filled plastic compounding (talc, calcium carbonate, glass fiber)
- Color & functional masterbatch manufacturing
- Waste plastic recycling & re-granulation
- Biodegradable plastic extrusion
- Polymer modification with fluffy powder additives
- Side feeding process for fiber and powder additives
We produce standard ZE60 deep groove feeding screw elements and support customized length & pitch. Standard sizes have short lead time. When sending inquiry, please provide screw layout drawing, raw material type, filler content and target output. All parts pass dimension inspection and hardness test before delivery.
Q1: Can this element directly replace original ZE60 spare parts?
A1: Yes. Dimensions, spline and flight geometry follow OEM standards. Direct installation without adjustment.
Q2: What is the difference between deep groove feeding element and normal forward conveying element?
A2: Deep groove feeding element has larger channel volume. It delivers higher feeding efficiency, suitable for low bulk density materials prone to bridging. Standard conveying elements fit melting and transition zones.
Q3: How do I select proper material grade?
A3: Choose nitrided 38CrMoAlA for regular plastic compounding. Pick WR5 / high speed steel for medium filler. Select SAM26 / CPM10V for high abrasive heavily filled materials.
Q4: Can you customize non-standard length and pitch?
A4: Available. We customize structure according to your screw arrangement drawing. We also provide free screw configuration technical suggestions.
Q5: What is your production capacity and delivery time?
A5: Monthly output: 8,000–12,000 pcs. Standard parts: 3–7 working days. Customized items: 7–15 working days. We offer 12-month warranty under normal operation.
If you struggle with low feeding efficiency or material bridging on your ZE60 extruder, our deep groove feeding screw element is your reliable solution. Send your processing requirements and drawings now. We recommend suitable material and geometry to lift your production throughput. Sample order and bulk production are supported.
