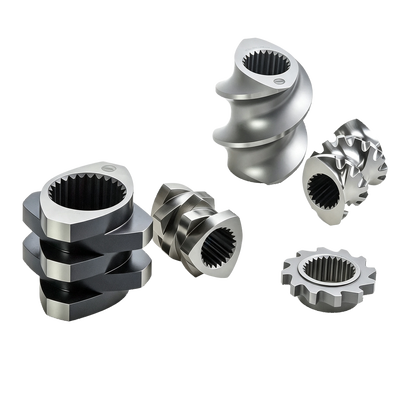

ZSE75 Reverse Screw Element Back Pressure Conveying Element For ZSE75 Extruder Spare Parts
|
ZSE75 Reverse Screw Element Back Pressure Conveying Element For ZSE75 Extruder Spare Parts
| Brand Name: | OEM |
| Model Number: | TSEP004 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T,Negotiable |
| Supply Ability: | 10000pcs/month |
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, ISO45001
Product Category:
Extruder Parts & Accessories
Product Type:
Reverse Screw Element / Back Pressure Conveying Element
Applicable Equipment:
ZSE75 Co-rotating Twin Screw Extruder
Compatibility:
100% Interchangeable With Original Leistritz Parts
Screw Outer Diameter:
75mm
Optional Base Material:
38CrMoAlA, WR5, W6Mo5Cr4V2, SAM26, CPM10V
Surface Treatment:
Gas Nitriding, Alloy Spray Welding, HIP Powder Metallurgy Cladding
Hardness:
58~64 HRC (adjustable According To Material And Treatment)
Custom Service:
Drawing Customization, Structural Optimization, Technical Matching
Order Service:
Sample Customization, Small-batch & Mass Customized Production
Packaging Details:
Industrial Carton
Highlight:
ZSE75 screw element
,Reverse screw element
,75mm screw elements
Product Description
ZSE75 Reverse Screw Element | Back Pressure Conveying Element for ZSE75 Extruder Spare Parts
ZSE75 Reverse Screw Element | Back Pressure Conveying Element for ZSE75 Extruder Spare Parts
Brief Introduction
This ZSE75 reverse screw element is also called back pressure conveying element. It serves as a direct replacement part for ZSE75 co-rotating twin screw extruders. First, it adopts a reverse helix structure. It slows down the forward flow of materials and builds stable melt back pressure inside the barrel. Then, it extends material residence time inside the machine. It makes plastic melting and material mixing more uniform. Besides, it fits original parts perfectly. It suits multiple production scenarios such as plastic compounding, masterbatch production, plastic recycling and filled material processing.
Key Functions
-
Build stable backpressure: It slows down material delivery and creates steady, adjustable extrusion pressure.
-
Extend material residence time: It allows polymer melt to fully melt, blend and react inside the extruder.
-
Improve mixing quality: It cooperates with kneading blocks to solve uneven mixing issues and deliver consistent material performance.
-
Optimize devolatilization effect: Workers install it in front of vent zones to remove moisture and volatile impurities more thoroughly.
-
Support modular assembly: It fits standard ZSE75 spline shafts. Users can freely combine it with regular conveying elements and kneading blocks.
Technical Specification
|
Item
|
Parameter
|
|
Product Name
|
ZSE75 Reverse Screw Element / Back Pressure Conveying Element
|
|
Applicable Machine
|
ZSE75 Co-rotating Twin Screw Extruder
|
|
Screw Outer Diameter
|
75 mm
|
|
Internal Spline
|
Standard ZSE75 spline, 100% interchangeable with original parts
|
|
Available Materials
|
38CrMoAlA (nitriding), WR5, W6Mo5Cr4V2, SAM26, CPM10V (customizable)
|
|
Surface Treatment
|
Gas nitriding, alloy spray welding, HIP powder metallurgy cladding
|
|
Hardness
|
58~64 HRC (depends on selected material)
|
|
Pitch & Length
|
We customize according to your screw layout drawings
|
|
Processing Profile
|
Erdmenger intermeshing self-wiping design
|
Product Advantages
-
Full Compatibility: We strictly follow original manufacturing standards. You can install and use it directly without any machine modification.
-
Precision Machining: We finish all elements with CNC precision processing to ensure accurate gap size. The self-wiping structure leaves no dead zone and no residual material buildup.
-
Flexible Material Options: We provide multiple material grades. They adapt to common, abrasive and corrosive working conditions and meet all your extrusion demands.
-
Stable Extrusion Performance: It outputs consistent back pressure. It effectively lowers production fluctuation and boosts the stability of finished product quality.
-
Long Service Life: We adopt professional heat treatment and surface strengthening processes. It reduces wear rate, cuts machine downtime and lowers your replacement cost.
Typical Application Scenarios
-
General plastic compounding and high-filler composite material production
-
Color masterbatch and functional masterbatch manufacturing
-
Polymer modification and reaction extrusion processing
-
Waste plastic recycling and devolatilization extrusion
-
Biodegradable plastics and engineering plastics production
FAQ
Q1: Can this reverse element replace original ZSE75 parts directly?
A1: Yes, it fits 100%. We make all dimensions, splines and profiles strictly per original standards. You can install it directly on your ZSE75 extruder with no adjustments needed.
Q2: What’s the difference between reverse screw element and normal forward element?
A2: Forward elements speed up material delivery. On the contrary, reverse elements slow down material flow to build steady back pressure. This extends material residence time, improves melting, mixing and devolatilization, and greatly boosts your final extrusion quality.
Q3: How to pick the right material for my production?
A3: Choose 38CrMoAlA nitriding for regular production for great cost performance. Pick WR5 or high-speed steel for medium wear with common fillers. Select SAM26 or CPM10V for high-filler, abrasive and corrosive materials for longer service life.
Q4: Can you customize size and structure?
A4: Yes, we offer full customization. We adjust pitch, length and structure based on your screw drawings and production needs. We also provide free technical optimization suggestions for your extrusion issues.
Q5: What’s your delivery time and quality warranty?
A5: We deliver standard parts in 3-7 working days, and customized parts in 7-15 working days. We test every product strictly before shipment. We also offer a 1-year warranty under normal working conditions.
Q6: Will reverse screw element cause material blocking?
A6: No, it will not block materials. Our self-wiping design and precise gap keep smooth material flow while building back pressure. It has no dead corners or material buildup for stable long-time operation.
Q7: Do you offer sample service and technical support?
A7: Yes, we support sample testing. Meanwhile, our team provides free screw matching guidance, process parameter advice and full after-sales technical support for your production.
Factory View
Tips
If you need stable and durable replacement screw elements for your ZSE75 extruder, feel free to contact us. We can match the most suitable material and screw structure according to your raw materials, filler ratio and production demands. We support fast sample delivery and customized processing, and we solve your extrusion problems such as unstable pressure, poor mixing and short part service life. Send us your requirements now to get a precise quotation and professional technical solution!
