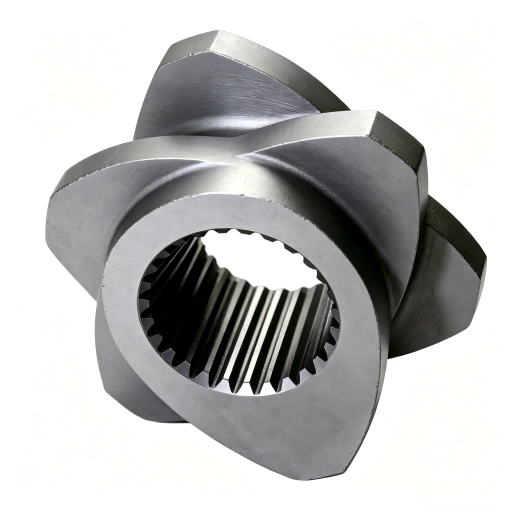

Twin Screw Extruder Kneading Blocks 12mm-300mm High Shear Mixing Segments
| Brand Name: | OEM |
| Model Number: | KB001 |
| MOQ: | 10 |
| Supply Ability: | 5000pcs/month |
300mm kneading blocks
,12mm kneading blocks
,300mm twin screw elements
Twin Screw Extruder Kneading Blocks 12mm-300mm | High Shear Mixing Segments
Our full-size range twin screw extruder kneading blocks cover outer diameters from mini lab 12mm up to industrial large-scale 300mm, core mixing modular components for all co-rotating parallel twin screw extruders. Manufactured with five-axis CNC precision machining, these kneading discs adopt intermeshing lobe design to deliver controllable high shear force and outstanding distributive & dispersive blending performance, solving uniform mixing difficulties for filled polymers, masterbatch, modified plastics and eco-friendly composite materials.
Available in four standard offset angles: KB30°, KB45°, KB60°, KB90°, each set of kneading discs forms independent shear intensity to match different extrusion formulas. The inner involute spline hole is processed strictly to original equipment standards, realizing fully interchangeable replacement for JSW TEX, Leistritz ZSE, Berstorff and other mainstream extruder brands. All kneading blocks support customized outer diameter, length, spline tooth count and lobe thickness within the 12mm–300mm size range to meet lab trial, medium production and heavy industrial granulation lines.
We supply standardized and custom kneading blocks covering the full OD spectrum for all twin screw production lines:
- Mini Lab Series: 12mm, 16mm, 20mm, 24mm, 30mm (small test extruders, lab material research)
- Medium Industrial Series: 35mm, 42mm, 50mm, 65mm, 75mm, 85mm, 95mm (masterbatch, WPC, engineering plastic modification)
- Large Heavy-Duty Series: 110mm, 135mm, 160mm, 200mm, 250mm, 300mm (high-throughput continuous compounding, large-scale recycling extrusion)
| Model Angle | Shear Level | Blending Feature | Suitable Processing Materials |
|---|---|---|---|
| KB30° | Low Shear | Gentle uniform distributive blending, low material degradation | Heat-sensitive PLA, PBAT biodegradable plastics, food-grade raw materials |
| KB45° | Medium Balanced Shear | Balanced dispersion & distribution, universal blending performance | PP/PE color masterbatch, general plastic filling modification, WPC pellets |
| KB60° | High Shear | Strong dispersive mixing, fully break down filler agglomerates | Glass fiber reinforced plastics, high calcium carbonate filled compounds, carbon black masterbatch |
| KB90° | Extreme Shear & Pressure Building | Zero forward conveying, maximum shearing, high back pressure | Devolatilization, reactive extrusion, high-viscosity polymer alloy blending |
All 12mm–300mm kneading blocks adopt vacuum heat treatment to reach hardness HRC58–65, with multiple alloy grades to match different working conditions:
Top wear resistance, long service life for high-filler, high shear continuous production, recommended for KB60° high-shear kneading blocks.
Cost-effective high wear performance, widely used for medium shear KB45° blocks in daily plastic compounding.
Superior acid & corrosion resistance, ideal for PVC, flame retardant and chemical corrosive formulas.
Economical general-purpose grade, suitable for low-filler, low-shear KB30° lab kneading blocks.
Food & medical grade, non-pollution, perfect for food extrusion and pharmaceutical polymer processing.
- Controllable High Shear & Uniform Blending
The staggered multi-lobe kneading disc structure creates strong material folding and splitting flow fields, breaking filler clusters completely while achieving homogeneous blending without material dead zones. - Full Size Customization 12mm–300mm
Support non-standard OD, length, spline and lobe thickness customization, reverse engineering mapping for old extruder equipment. - Precise Self-Wiping Geometry
Tight intermeshing clearance eliminates material residue and carbon buildup, maintaining consistent product quality during long-run continuous extrusion. - High Precision Machining
Outer diameter tolerance ±0.01mm, spline inner hole H7 grade, smooth lobe surface without burrs, stable assembly matching. - Eco-Friendly Machining Process
Low-pollution alloy heat treatment, compatible with biodegradable & green material compounding production demands.
- Biodegradable plastic compounding (PLA, PBAT, starch-based pellets)
- Wood plastic composite (WPC) granulation & profile extrusion
- Color masterbatch, functional filler masterbatch production
- Glass fiber reinforced engineering plastic modification
- Food, feed and pharmaceutical twin screw extrusion
- Plastic waste recycling & devolatilization extrusion
- Lab small extruder material formula research (12mm–30mm mini kneading blocks)
- ISO9001 certified production workshop, full-process raw material, hardness, dimension inspection.
- Export-standard rust-proof treatment & wooden case packaging for long sea transportation.
- 12-month quality warranty, professional screw configuration technical support.
- Fast delivery: standard size kneading blocks in stock, custom 12–300mm segments within 15–30 working days.
A: Our twin screw kneading blocks cover outer diameter from 12mm mini lab size up to 300mm large industrial size, all KB30°/45°/60°/90° angles available for each size.
A: KB90° kneading blocks deliver extreme shear strength for pressure building; KB60° is the most common high-shear model for filler dispersion.
A: Yes, all spline, OD and center distance parameters strictly follow OEM standards for direct interchangeable installation.
A: WR5 powder metallurgy alloy is the top choice for long-term high-shear production; 6542 high-speed steel is a budget alternative.
