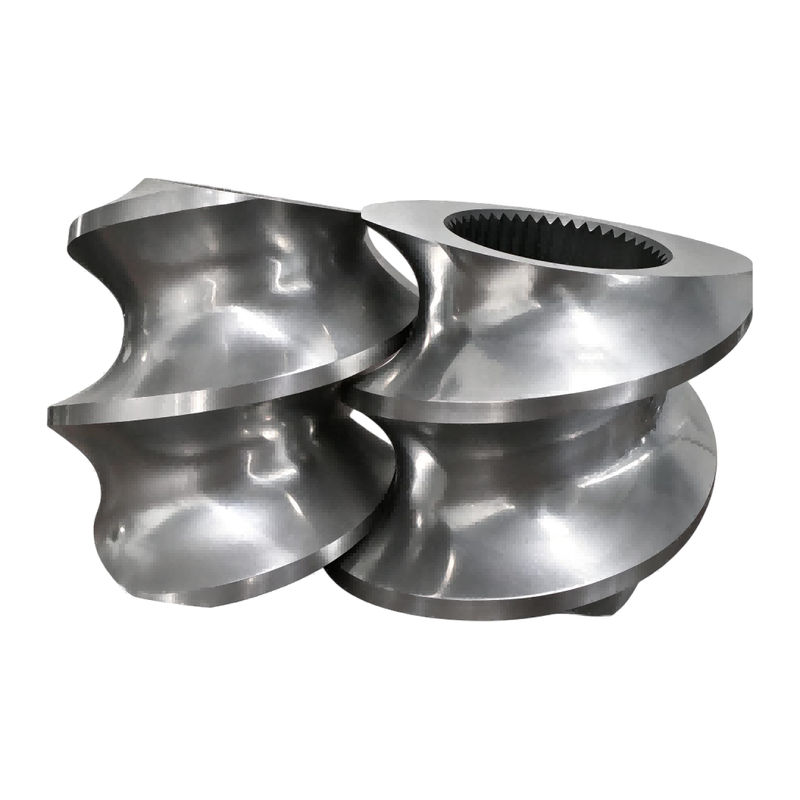

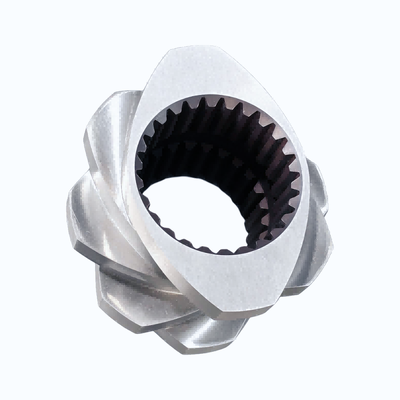

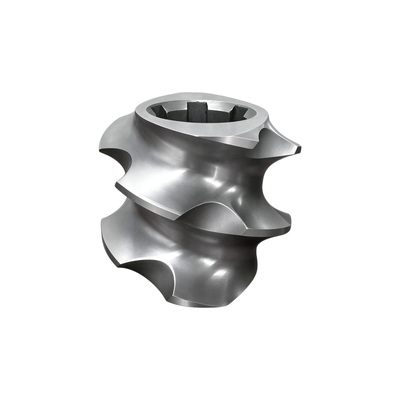

CTE75 2-Flighted Transfer & 3-Flighted Screw Elements

Product Description

The CTE75 2-Flighted Transfer & 3-Flighted Screw Elements are specialized screw elements for twin screw extrusion applications. The combination of 2-flighted and 3-flighted designs provides different conveying and material-processing characteristics within a screw configuration.

The 2-flighted transfer element supports material conveying and controlled transport through the extrusion process. The 3-flighted screw element provides a different flight geometry for material handling and dispersion. The two element designs can be arranged with other conveying, mixing, and kneading elements according to the processing requirements.

This type of screw element is suitable for plastic processing, compounding, food extrusion, wood-plastic processing, and other twin screw extrusion applications. Similar CTE75 screw element listings identify plastic, wood-plastic, food, and powder-coating applications.

CONLIN manufactures custom twin screw extruder elements based on customer drawings, samples, dimensions, spline profiles, material requirements, and extruder specifications.

Product Specifications

Key Features

• 2-flighted transfer element design
• 3-flighted screw element design
• Designed for twin screw extrusion
• Suitable for CTE75 applications
• Supports controlled material conveying
• Suitable for material transfer and dispersion
• Modular screw element configuration
• Multiple material options
• Customized spline profile
• CNC precision machining
• Suitable for replacement and custom production

Typical Applications

These screw elements can be used in twin screw extrusion applications including:

• Plastic compounding
• Polymer processing
• Food extrusion
• Puffed food processing
• Wood-plastic compounding
• Masterbatch production
• Additive mixing
• Powder coating

The final screw configuration should match the processed material, throughput, screw speed, temperature, and required mixing or conveying performance.

Custom Manufacturing

CONLIN can manufacture CTE75 screw elements according to:

• Customer drawings
• Existing screw elements
• Samples
• Screw diameter
• Element length
• Spline profile
• Flight geometry
• Material requirements
• Heat treatment requirements
• Extruder model

We can also supply matching conveying screw elements, mixing elements, kneading blocks, transition elements, screw shafts, and other twin screw extruder parts.

B2B Supply

CONLIN supplies custom and replacement twin screw extruder elements for extrusion manufacturers, plastic processing companies, machinery manufacturers, distributors, and aftermarket suppliers.

Send us your drawing, sample, part number, or machine model to confirm dimensions, material, spline profile, and production requirements.
