Product Overview

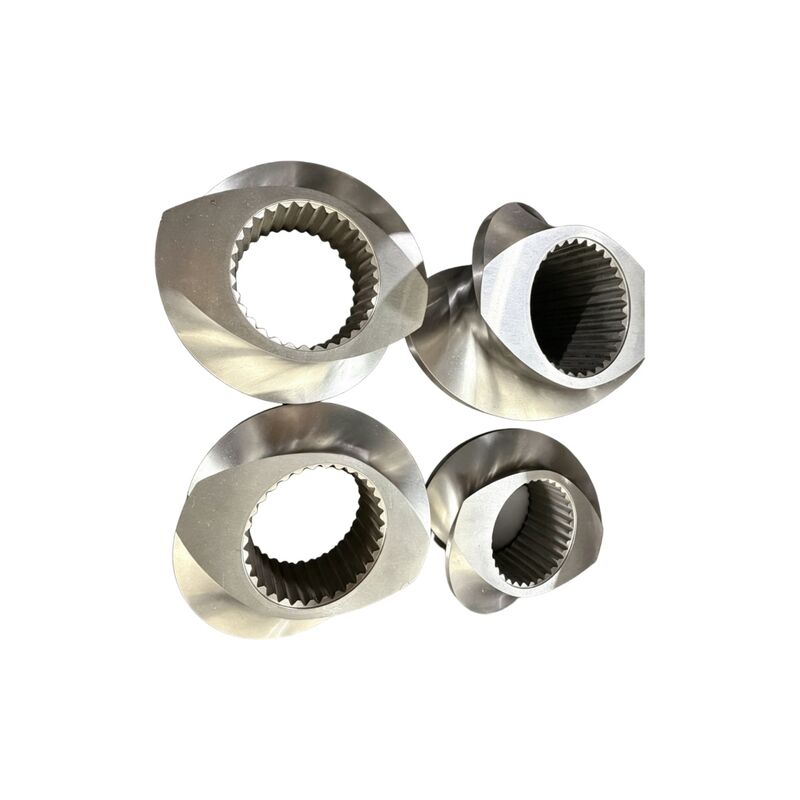

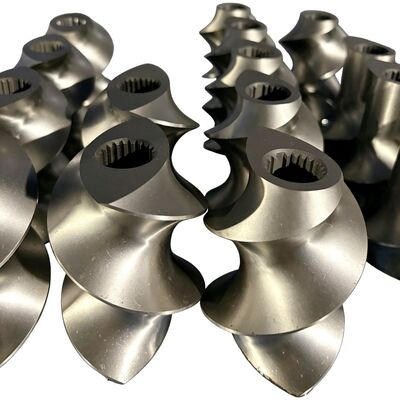

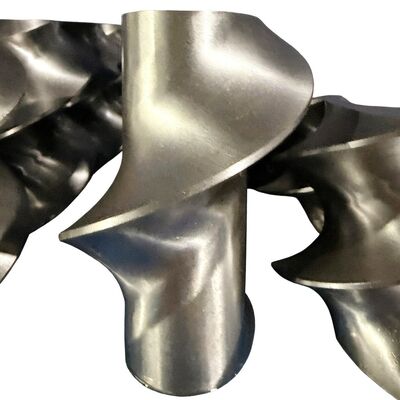

High-precision Macross 46 twin screw extruder elements engineered for high-torque co-rotating and counter-rotating twin screw systems. Specifically optimized for plastic extrusion processing including PE, PP, PVC, and ABS pipe, film, profile, and masterbatch compounding lines. Precision-machined with high-grade tool steel and advanced surface alloys to provide high wear resistance, optimal plasticization, and long-lasting production efficiency.

Technical Specifications

• Outer Diameter: 46 mm (Macross 46 Standard Specification)

• L/D Ratio Segment: 0.25D to 2.0D per individual element

• Diameter Ratio (Do/Di): Standard 1.48 to 1.55 (Customizable to shaft design)

• Drive & Spline Profile: Involute Spline (DIN 5480), Square Keyway, Hexagonal Shaft

• Machining Precision: Surface Roughness: Ra <= 0.4 um; Radial Runout: <= 0.015 mm

• Hardness Profile: Nitrided Steel: HV >= 950 (HRC 65-68); Tool Steel / HIP PM Steel: HRC 60-65; Bimetallic Layer: HRC 58-64

• Nitriding Layer Depth: 0.4 mm - 0.7 mm

Core Product Advantages

• High Torque & Load Bearing Capacity: Engineed to withstand extreme torque and pressure during heavy-duty compounding of filled polymers and rigid PVC without cracking or spline deformation.

• Superior Self-Wiping Performance: Precision CNC flight profiles ensure complete self-wiping action, preventing material stagnation, carbonization, and cross-contamination during color changes.

• Maximum Wear & Corrosion Resistance: Advanced HIP powder metallurgy and bimetallic options deliver exceptional resistance against highly abrasive additives (glass fiber, CaCO3, TiO2) and corrosive flame retardants.

• Exact Dimensional Interchangeability: Manufactured with tight machining tolerances to guarantee 100% direct drop-in replacement on original Macross 46 extruders with seamless shaft assembly.

Applications & Processing Scenarios

• Pipe Extrusion Lines (PE / PP / PVC): Offers smooth conveyance and uniform heat distribution, preventing thermal degradation during rigid PVC and high-density PE pipe production.

• Film & Sheet Processing (PE / PP / ABS): Equipped with high-dispersion kneading and mixing blocks to eliminate fisheyes, gels, and color streaks in blown and cast films.

• Plastic Compounding & Masterbatch: Provides strong dispersive mixing for high-filler masterbatches (CaCO3, TiO2) and fiber-reinforced plastics.

Why Choose Us

• 100% Direct Replacement: Engineered for direct drop-in replacement on Macross 46 twin screw extruders with zero alteration needed.

• Superior Wear & Corrosion Resistance: Made with premium powder metallurgy (HIP) and bimetallic alloys to ensure long service life under high-wear processing conditions.

• Precision CNC Machining: Guarantees strict tolerances, flawless self-wiping action, and optimal clearance between screw flights and barrel walls.

• Rigorous Quality Control: 100% CMM dimensional inspection, hardness test, and metallurgical analysis before shipment.
