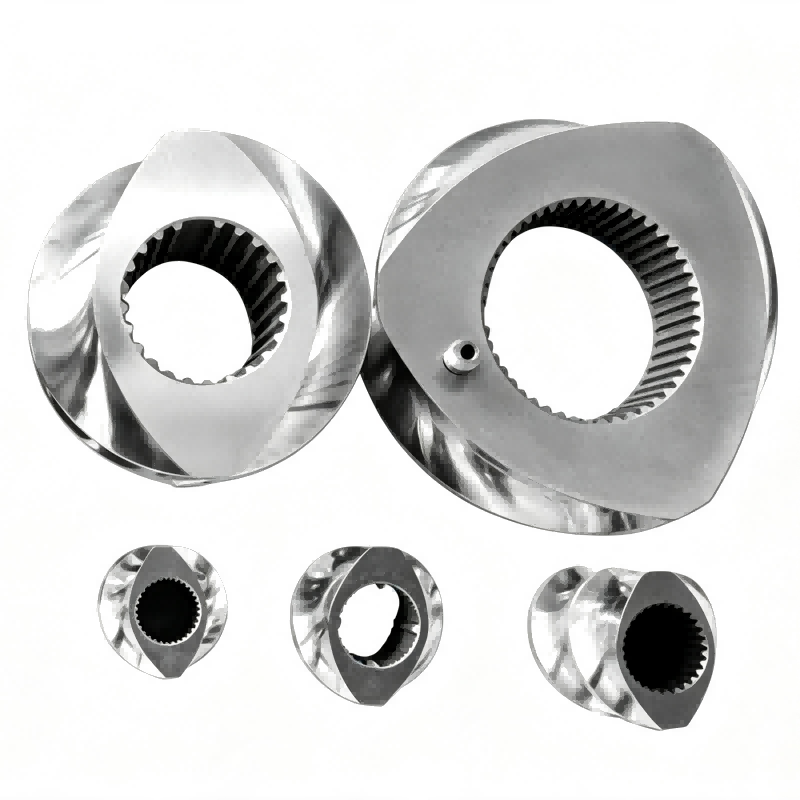

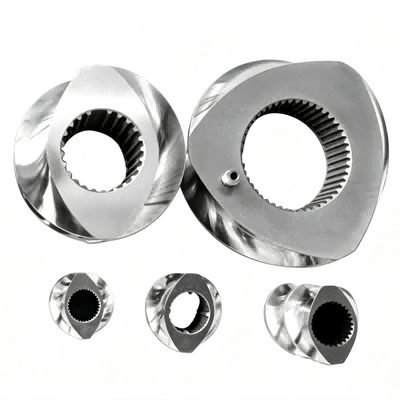

ZSE50 Special Screw Segments Kneading Blocks 5.6-30mm Range
| Brand Name: | OEM |
| Model Number: | ESE005 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 8000pcs/month |
ZSE50 kneading blocks
,30mm kneading blocks
,5.6mm kneading block
ZSE50 Special Screw Segments & Kneading Blocks | Φ15.6 - Φ430mm Range
We manufacture high-precision ZSE50 Special Screw Segments and Kneading Blocks for twin screw extruders. Furthermore, we cover an extensive outer diameter range from Φ15.6 mm up to Φ430 mm. As a result, our durable elements deliver uniform shear, prevent material stagnation, and boost your daily extrusion output.
| Feature / Property | Specification Summary |
|---|---|
| Product Model | ZSE50 Special Screw Segments & Kneading Blocks |
| Diameter Range | Φ15.6 mm – Φ430 mm |
| Compatible Equipment | ZSE50 and Co-rotating Twin Screw Extruders |
| Component Types | Special Mixing Segments, Kneading Blocks, Conveying Elements |
| Primary Materials | 38CrMoAlA, 41CrAlMo7, D2 Tool Steel, HIP Powder Alloys |
| Surface Treatment | Computerized Nitriding, Bimetallic Cladding, Polishing |
| Machining Accuracy | CNC Thread Grinding, Tolerance ±0.01 mm |
| Lead Time | 7–10 days (Standard Stock) / 15–20 days (Custom Production) |
-
Broad Size Coverage (Φ15.6 – Φ430mm):
We produce special screw elements from small laboratory scale up to massive commercial extrusion lines. Consequently, we meet all your facility needs under one roof.
-
Superior Mixing and Dispersion:
Our ZSE50 kneading blocks provide optimal dispersion and distribution of additives. Therefore, you achieve consistent plasticization and homogeneous melt quality.
-
High Wear and Corrosion Resistance:
We select premium nitriding steels, tool steels, and bimetallic alloys. Thus, our components withstand harsh abrasive fillers and aggressive chemical additives.
-
100% Direct Fit Guarantee:
We machine all parts strictly to standard factory tolerances. Because of this, your maintenance team can replace worn elements quickly without modifications.
| Specification Parameter | Technical Detail / Value |
|---|---|
| Model Designation | ZSE50 Special Screw Segment / Kneading Block |
| Screw Diameter Range | Φ15.6 mm – Φ430 mm |
| Compatible Extruder Type | Co-rotating Twin Screw Extruders |
| Base Materials | 38CrMoAlA, 41CrAlMo7, Tool Steel (D2 / 1.2379), Powder Metallurgy |
| Surface Hardness | 900 – 1100 HV (Nitrided) / 58 – 65 HRC (Tool Steel / Alloys) |
| Nitrided Case Depth | 0.4 mm – 0.8 mm |
| Machining Tolerance | Precision CNC Thread Grinding, Tolerance ±0.01 mm |
| Surface Roughness (Ra) | < 0.4 µm (Standard) / < 0.2 µm (Polished) |
| Quality Certification | ISO 9001, Material Test Certificate (MTC), Inspection Report |
Our precision ZSE50 special screw segments and kneading blocks excel across demanding compounding tasks:
-
Engineering Plastics Compounding: Homogenizing PA, PBT, PC, PET, and ABS reinforced with glass fibers or mineral fillers.
-
Masterbatch & Additive Production: Distributing high-density pigments, flame retardants, and processing aids uniformly.
-
Reactive Extrusion & Devolatilization: Providing precise shear for continuous chemical reactions and monomer removal.
-
Thermoplastic Elastomers (TPE/TPU/TPR): Mixing sensitive elastomers smoothly without thermal degradation.
-
Recycled Plastics Repelletizing: Handling post-industrial and post-consumer plastic scrap while maintaining steady pressure.
A: Yes, absolutely. We manufacture all ZSE50 components strictly according to standard dimensions and tolerances. Furthermore, we inspect every element on precision measuring machinery before delivery. Consequently, our parts fit your machine seamlessly without extra machining.
A: Your choice depends on your processing goal. Use standard conveying elements for material transport and pressure building. However, use special kneading blocks when you need intensive melting, pigment dispersion, or high shear mixing.
A: We keep standard raw steel profiles in stock continuously. Therefore, we usually ship standard replacement elements within 7 to 10 working days. However, large-diameter parts or specialized bimetallic alloys may require 15 to 20 days.
Don't let worn kneading blocks ruin your melt quality or reduce your output.
We offer factory-direct pricing, precision CNC manufacturing, and fast worldwide delivery for ZSE twin screw components.
📩 Get your fast quote in 3 simple steps:
-
Send us your required part numbers or CAD drawings.
-
Specify your processing material and target screw diameter.
-
Receive a comprehensive quotation within 12 hours!
👉 Email us directly for immediate support!
